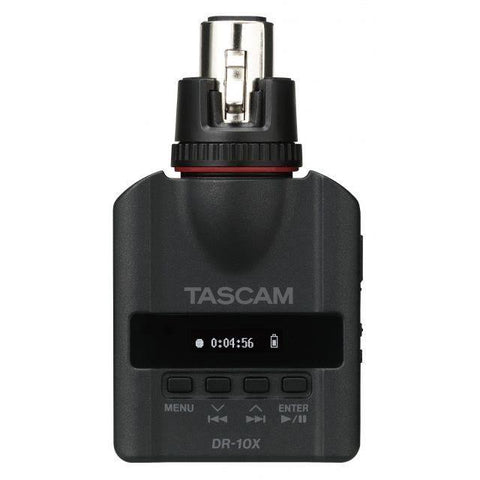

Tascam DR-10X
DR-10XThe DR-10X attaches to a handheld microphone for the ultimate compact news gathering recording system.
A captive XLR connector attaches firmly to your microphone, capturing interviews at 48kHz/24-bit Broadcast WAV resolution. Offload recordings through the microUSB connection or by removing the MicroSD card.
The DR-10X has both manual and automatic gain settings, with a low cut filter and limiter to prevent overloads. The Dual Recording mode captures a copy of the audio at a lower level, so if there is distortion you have a backup safety. Recording can begin instantly by holding the record side switch while turning the unit on. For simple-to-use ENG recording that stays out of the way, TASCAM’s DR-10X leads the field.
Product Features
- XLR jack mounts directly to dynamic microphone (It also can use condenser microphone powered by battery.)
- 48kHz/24 bit BWF mono recording
- Uses MicroSD or MicroSDHC media, up to 32GB
- Mic pre gain Low/Mid/High control
- Instant record mode – power on while holding record button side switch
- Limiter and low cut filter
- Manual or automatic gain control
- Dual recording mode captures a copy of your audio at a lower level as a safety track
- Time Track Increment function writes a new track marker after a set time limit. There is on/off setting, but the time is 15 minutes fixed when turn it on.
- Easy-to-read OLED display
- Edit settings on a PC and send them to the DR-10X through the microUSB port
- Playback function with headphone out
- More than 8 hours of recording with single AAA battery
Product Specifications
- Recording media microSD card(64MB to 2GB),
- microSDHC card(4GB to 32GB)
- Media discharging Push-Push type (Guard cover mounted)
- Sampling frequency 48kHz
- Quantization bit rate 24bit
- Number of channels 1-channel (Mono)
- Connector XLR-3-31
- Input Impedance 10k ohm or more
- MIC input gain LOW / MID / HIGH
- Connector 3.5mm(1/8") stereo mini jack (DUAL MONO)
- Connector Micro-B type 4pin
- Maximum Output USB2.0 HIGH SPEED mass storage class
- Power 1 AAA batteries (Alkaline or NiMH),
- USB bus power
- Alkaline batteries (EVOLTA) About 10 hours
- Battery (RTC) Lithium × 1(built in with soldering)
- Dimensions 52(W) × 94.4(H) × 28(D) mm
- Weight 68.3g (including batteries) / 56.3g (without batteries)
- Accessories USB cable, Owner's Manual (including warranty)
Manufacturer: Tascam
