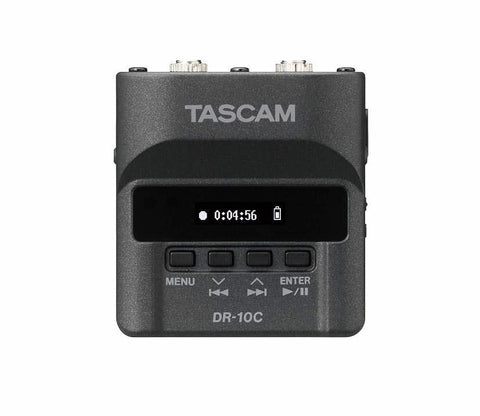

Tascam DR-10CS
DR-10CSTascam's DR-10CS connects to your Sennheiser lavalier microphone to create a compact recording system that is ideal suited to events where mobility is needed such as weddings, TV and theatre productions.
The DR-10 CS recorder features both input and output connections, allowing the device to be used either standalone, or with a wireless transmitter. When used with a transmitter, the unit acts as a backup to protect against wireless dropouts during recording.
Includes auto-gain and a low-cut filter for simple setup. The DR-10CS's dual recording feature records a safety track of your audio at a lower level, so you have a backup in case of distortion. When multiple units are used, an infrared signal can synchronise settings between recorders.
The lightweight DR-10C runs for hours on a single AAA battery. It records to standard microSD media.
Additionally, option kits are available for Sony/RAMSA (AK-DR10CR.) and Shure (AK-DR10CH)
Product Features
- Micro Linear PCM Recorder for Wireless Beltpacks
- 48kHz/24-bit mono digital recording
- Uses standard microSD/microSDHC card media (up to 32GB)
- Dual Recording feature captures a safety track in case of distortion
- Two models for Lectrosonics and Sennheiser mics, option packs for Shure, Sony, and RAMSA
- Hold function prevents accidentally switching off the recorder (All keys cannot operate during recording)
- Limiter and low-cut filter on input
- Auto gain control
- Records BWF file timestamped with time of day clock
- Time Track increment function writes new track after a preset amount of time.(There is on/off setting, but the time is 15 minutes fixed when turn it on)
- OEL display for easy visibility in any light condition
- More than 8 hours recording on a single AAA battery
- Settings can be created with text file on PC and transferred to DR-10C via USB connection
Product Specifications
- Recording media microSD card (64MB to 2GB),
- microSDHC card (4GB to 32GB)
- Media discharging Push-Push type (Guard cover mounted)
- Sampling frequency 48kHz
- Quantization bit rate 24bit
- Number of channels 1-channel (Mono)
- DR-10CS 3.5mm (1/8") TRS jack with screw-lock (Sennheiser)
- Pin assign is different from SONY and RAMSA (Switchable with slide switch on PCB)
- MIC input gain LOW / MID / HIGH
- Connector 3.5mm(1/8") stereo mini jack (DUAL MONO)
- Connector Micro-B type 4pin
- Maximum Output USB2.0 HIGH SPEED mass storage class
- Power 1 AAA batteries (Alkaline or NiMH),
- Battery operation time
- Alkaline batteries (EVOLTA) About 10 hours
- Battery (RTC) Lithium × 1 (built in with soldering)
- Dimensions 52(W) × 55.6(H) × 24.4(D) mm
- Weight 63g (including batteries) / 51g (without batteries)
- DR-10CS / DR-10CL USB cable,Connection cable, Carrying case, Clip, Belt, Owner's Manual (including warranty)
- AK-DR10CH / AK-DR10CR Connection cable, Spare screws × 3
Manufacturer: Tascam
