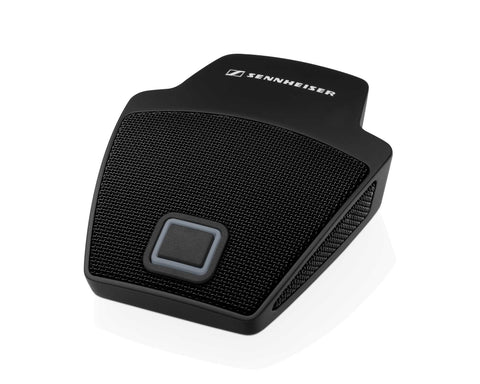

Sennheiser MEB 114-S B

The sturdy on-table boundary layer microphone MEB 114 in black constitutes an improvement for any conferencing system.

In its -S version it additionally features a programmable microphone button (PTT, PTM, toggle on/off, permanenton), and a bi-colour LED ring for status indication. A camera or media control system can be triggered via the TTL logic out on the bottom side.

Thanks to its rugged housing and its high-quality microphone capsule the MEB 114 ensures the best speech intelligibility.

Features

• MEB114SB Cardioid On-table Boundary Mic
• Programmable microphone button
• Bi-colour LED ring for status indication
• TTL logic
• Rugged and high-quality
• Black finish

Specifications

General

• Connector: tiny XLR-3, Pin assignment: 1 = gnd, 2 = +, 3 = −
• Frequency response: 40 Hz – 20 kHz
• Max. sound pressure level: 140 dB
• Transducer: principle pre-polarized condenser microphone
• Pick-up pattern: cardioid
• Nominal impedance: 200 Ω
• Phantom powering: P 24 - P 48
• Operating temperature: -10 °C - +50 °C
• Equivalent noise level: 29 dB (A)
• Equivalent noise level weighted as per CCIR 468-3: 39 dB (CCIR)
• Current consumption: 1.5 mA
• Acoustics: boundary layer microphone
• Dynamic range: 111 dB (A)
• Sensitivity: 10 mV/Pa

Physical & Dimensions

• Height: 25mm
• Width: 85mm
• Depth: 100mm
• Weight: 291g

Manufacturer: Sennheiser
