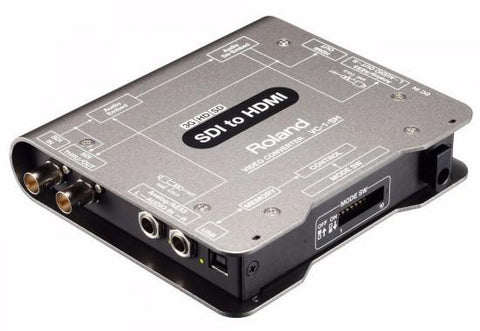

Roland VC-1-SH Video Converter

The VC-1-SH converter allows you to convert an SDI signal to HDMI, providing a more cost effective monitoring solution.

This converter is also complimentary to the Roland V-40HD multi-format video mixer when you want to use an SDI camera as an input to the mixer.

FEATURES:

• High-quality, lossless video and audio converters
• For live/post production as well as installed systems
• Provides uncompromising picture quality
• No interlacing artifacts or other conversion or signal errors
• On-board re-clocker to compensate for attenuation of SDI signals
• Connect a variety of higher quality SDI sources

SPECIFICATION:

Input

• SDI Connector: BNC type x 1
• Analog Audio Connector: 1/4" TRS phone type ( balanced ) x 1 pair (L/R)
• Digital Audio Connector: 1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector)

Processing

• Audio embedding Audio de-embedding

Output

• SDI Connector: BNC type x 1 ( Thru/Out )
• HDMI Connector: Type A (19 pins ) x 1
• Analog Audio Connector: 1/4" TRS phone type ( balanced) x 1 pair (L/R)
• Digital Audio Connector: 1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector)

Input/Output Format

• SDI Input Signal Standards: SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
• SDI Input Video Format:
  • 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M )
  • 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M ),
  • 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
• Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
• HDMI Input Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
• HDMI Input Audio Format: Linear PCM, 24 bit, 48 kHz, 8 ch
• SDI Output Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
• SDI Output Video Format:
  • 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ),
  • 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M),
  • 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
• SDI Output Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
• HDMI Output Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
• HDMI Output Audio Forma: tLinear PCM, 24 bit, 48 kHz, 8 ch

Audio Input/Output

• Analog Audio Input Level: +4dBu
• Analog Audio Maximum Input Level: +24dBu
• Analog Audio Input Impedance: 110 ohms
• Analog Audio Output Level: +4dBu
• Analog Audio Output Impedance: 600 ohms
• Digital Audio Output Signal Format: AES3, 16/24 bits, 32/48 kHz, 2 ch
• Digital Audio Output Impedance: 110 ohms

General

• USB Connector: USB Type B (Hi-Speed USB) x 1
• Power Supply: DC 9V
• Power Consumption: 8W
• Operation Temperature: +0 to + 40 degrees Celsius

Physical & Dimensions

• Width: 15mm
• Depth: 130mm
• Height: 30mm
• Weight: 500g

Manufacturer: Roland
