Martin Audio Blackline X115 Subwoofer

Martin Audio Blackline X115 Subwoofer


Martin Audio

  • £735.00
Usually shipped within 2-3 working days

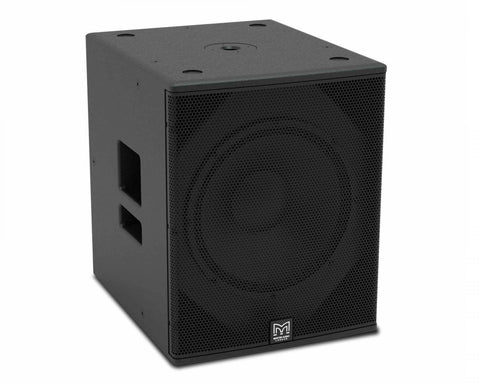

The X115 is a very compact subwoofer designed to augment the low frequency performance of BlacklineX Series full-range systems. It comprises a long excursion 15” (380mm)/3” (75mm) voice coil driver in a bass reflex enclosure and can be used singly, stacked or flown via integral M10 inserts. Four large ports contribute to a reduction in air noise at high output levels.

The Blackline X115 enclosure is constructed from plywood and finished in black textured paint as standard, with white and RAL colour finishes available to special order.

An impact-resistant perforated steel grille protects the driver, and the enclosure has a 35mm pole-mount fitting in the top surface and two side handles for ease of handling. Rubber feet on the base of the enclosure resist movement and align with recesses in the top surface for stable stacking.

When used with BlacklineX Series full-range systems, crossover and EQ functions can be performed by the DX0.5 system controller or by an MA Series [Electronics] amplifier with on-board DSP option.


  • Compact, direct-radiator subwoofer
  • 1 x 15” (380mm) driver with 3” (75mm) voice coil
  • Large ports for reduced air noise
  • Screw-free perforated steel grille
  • 35mm pole-mount socket
  • 8Ω nominal impedance
  • M10 flying inserts
  • Finish: Black



  • Type:  Compact, direct radiating subwoofer
  • Frequency Response :  45Hz-150Hz ± 3dB, -10dB @ 40Hz
  • Driver:  15” (380mm)/3” (75mm) voice coil, long excursion, ferrite magnet
  • Rated Power:  500W AES, 2000W peak
  • Recommended Amplifier:  MA3.0, MA5.0Q
  • Sensitivity:  102dB
  • Maximum SPL:  129dB continuous, 135dB peak (half space)
  • Nominal Impedance:  8 ohms
  • Dispersion (-6dB):  Omnidirectional
  • Crossover:  80-120Hz active (with DSP)
  • Enclosure:  Birch/poplar ply
  • Finish:  Black textured paint
  • Protective Grille:  Black perforated steel
  • Connectors:  3 x NL4 type
  • Pin Connections (INPUT):  1+/1-
  • Pin Connections (LINK):  A: 1+/- to 1+/-, B: 2+/- to 1+/-

Physical & Dimensions

  • Fittings:  16 x M10 inserts, pole-mount socket, 2 x bar handles, provision for castors
  • Dimensions:  (W) 465mm x (H) 590mm x (D) 565mm
  • Weight:  27kg


  • Portable sound reinforcement
  • Live music clubs
  • Bars and restaurants
  • Nightclubs
  • Corporate AV events and conferences
  • Weddings and parties
  • Secondary stages at festivals
  • HoW, leisure centres and retail outlets

      Manufacturer: Martin Audio
