JEM ZR45

JEM ZR45

92215360/ MAR1165

JEM

  • £874.00
Usually shipped within 2-3 working days

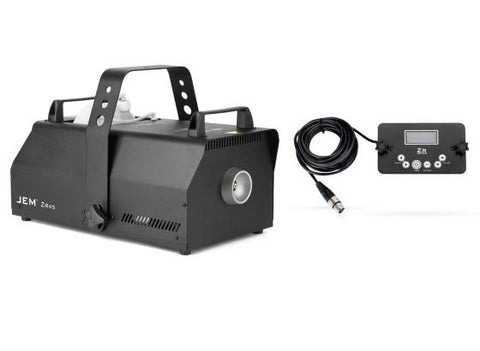

The JEM™ ZR45 is a high-end fog machine designed to deliver superior and uninterrupted performance in demanding professional applications.

Via its enhanced and powerful 2,000 W heat exchanger, the JEM ZR45 produces an exceptional peak output ideal for major venues and stages in both install and rental markets.

The rugged yet weight-optimised JEM ZR45 also features variable output control for more subtle effects and is fully up-to-date with digital remote, DMX and RDM.

The entire JEM ZR range is compatible with a wide range of JEM Pro fog fluids. As machines designed and built to last, the JEM ZRs will continue to perform with great output and low consumption.

FEATURES:

  • High endurance high-end fog machine
  • Exceptional performance and output
  • Various control options via digital remote, DMX and RDM
  • 2,000 W (EU model) / 1,800 W (US model) heat exchanger
  • 80 ml in 30 seconds peak performance
  • 1300 m³/min fog output
  • Variable output control for subtle effects
  • 9-10 minute warm-up time
  • Digital remote, DMX and RDM
  • Compatible with a wide range of JEM Pro fog fluids
  • Floor standing or truss mounting (bracket included)
  • PowerCON TRUE1
  • 5-litre bottle

    SPECIFICATION:

    Physical

    • Length: 602 mm (23.1 in.)
    • Width: 395 mm (15.6 in.)
    • Height: 306 mm (12.1 in.)
    • Height including hanging bracket: 393 mm (15.5 in.)
    • Dry weight: 17.7 kg (39.1 lb.)
    • Filled weight: 22.7 kg (50 lbs.)

    Control and Programming

    • Control options: Integrated digital remote control, DMX, optional analog remote control, master/slave link mode
    • Control parameters: Continuous or timer-controlled output
    • Fog: Variable output control, 0-100%
    • DMX channels: 1
    • DMX compliance: ANSI E1.11 - USITT DMX512-A
    • RDM compliance: ANSI/ESTA E1.20 RDM

    Construction

    • Housing: Steel and aluminium
    • Hanging bracket: Integrated yoke w/safety attachment point
    • Colour: Black
    • Heat exchanger (US model): 1800 W, thermally protected
    • Heat exchanger (EU model): 2000 W, thermally protected
    • Fluid pump: Dual oscillating piston, high pressure
    • Fluid management: Fluid out sensing, sealed for transportation
    • Fluid reservoir: 5 l drop-in reservoir with quick-connect fitting
    • External fluid control: Fluid sensing
    • Remote control: Integrated Digital Remote with 3 m cable, 3-pin XLR

    Installation

    • Mounting: Standing or hanging
    • Orientation: Up to +/- 40° from horizontal
    • Clearance around machine: 100 mm (4 in.)

    Connections

    • AC Power: Neutrik PowerCON TRUE1
    • DMX, link mode in/out: 5-pin locking XLR
    • Remote control: 3-pin locking XLR
    • Firmware: AVR socket

                                  Manufacturer: JEM
