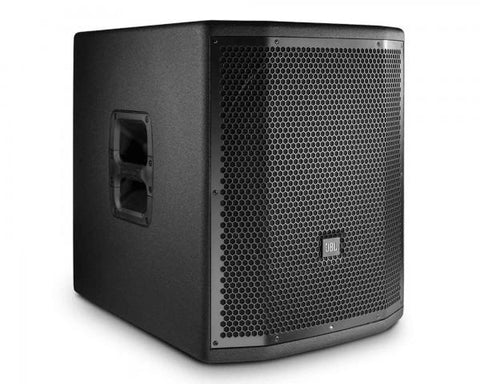

JBL PRX818XLFW 18" Active Subwoofer

The JBL PRX818XLFW is a self-powered extended low-frequency subwoofer system.

Featuring a JBL 18-inch woofer powered by a 1500-watt class-D amplifier, PRX 818XLFW delivers incredible output in a lightweight and compact form factor.

Main Features

• Built-in Wi-Fi for wireless control of your system from anywhere in the venue
• Class-leading 1500-watt amplifier delivers ample power to fill your venue
• Next-generation JBL neodymium compression drivers
• Intelligent variable-speed fan activates only when needed to reduce noise
• Universal power supply for worldwide compatibility
• Updated tuning delivers flat frequency response and smooth off-axis behavior

Product Specifications

General

• System Type: Self Powered 15” subwoofer
• Maximum SPL Output: 131 dB peak
• Frequency Range (-10 dB): 36 Hz - 98 Hz
• Frequency Response (±3 dB): 40 Hz – 87 Hz
• Input Connectors: Two Balanced female XLR/ 1/4” combo connectors
• Input Impedance: 20K Ohms (balanced)
• Signal Indicators: Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio.
• Dynamic Control (Input): dbx Type IV™ limiter circuit
• Internal Crossover Frequency: 80 Hz DSP
• Loop out Crossover Frequency: 120 Hz analog 24 dB filter slope
• Design: Highly efficient Class-D amplifier
• Power Rating: 1500W
• AC Power Input: 100V - 240V ~ 50/60 Hz
• LF Driver: 1 x JBL 2275H 15 in woofer
• Enclosure: Rectangular, 18 mm & 25 mm, plywood
• Transport: 2 x injection molded handles with backing cup
• Finish: Obsidian DuraFlex™ finish
• Grille: Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.

Physical & Dimensions

• Height: 548mm
• Width: 446mm
• Depth: 572mm
• Weight: 25.4kg

Manufacturer: JBL
