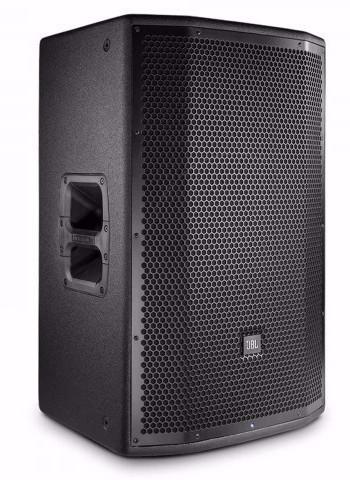

JBL PRX815W 15" Active PA Speaker

JBL PRX815W 15" Active PA Speaker

JBL1797

JBL

  • £699.00
Usually shipped within 2-3 working days

The JBL PRX815W is a full-range speaker designed for main system and floor monitor applications.

Featuring a 15”, two-way, bass-reflex design powered by a 1500-watt class-D amplifier, PRX815W delivers incredible volume in a lightweight and compact form factor.

Main Features

  • Built-in Wi-Fi for wireless control of your system from anywhere in the venue
  • Class-leading 1500-watt amplifier delivers ample power to fill your venue
  • Next-generation JBL neodymium compression drivers
  • Intelligent variable-speed fan activates only when needed to reduce noise
  • Universal power supply for worldwide compatibility
  • Brutal testing regimen

Product Specifications

General

  • System Type: Self Powered 15”, two-way, bass-reflex
  • Maximum SPL: Normal: 137 dB
  • Boost: 137 dB
  • Frequency Range (-10 dB): Main: 50-20k Monitor: 46-20k
  • Frequency Response (±3 dB): Main: 56-20k Monitor: 56-19k
  • Input Connectors: 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
  • Input Impedance: 20K Ohms (balanced), 10K Ohms (unbalanced)
  • Signal indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio
  • EQ: User selectable presets for Main or Monitor position, Advanced EQ settings available using Wi-Fi and PRX Connect application
  • Dynamic Control (Input): dbx Type IV™ limiter circuit
  • Crossover Frequency: 2.0 kHz
  • Design: Highly efficient Class-D amplifier
  • Power Rating: 1500W (750W x 2)
  • AC Power Input: 100V - 240V ~ 50/60 Hz
  • LF Driver: 1 x JBL 275G (15 in) woofer
  • HF Driver: 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
  • Coverage Pattern: 90° x 50° nominal
  • Directivity Index (DI): 10.2 dB
  • Directivity Factor (Q): 10.4
  • Enclosure: Asymmetrical, 18 mm, plywood
  • Suspension / Mounting: Dual 36 mm pole socket, 12 x M10 Suspension Points
  • Transport: 1 x injection moulded handle with backing cup
  • Finish: Obsidian DuraFlex™ finish
  • Grille: Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.

Physical & Dimensions

  • Height: 701mm
  • Width: 446mm
  • Depth: 359mm
  • Weight: 21.6kg

    Manufacturer: JBL
