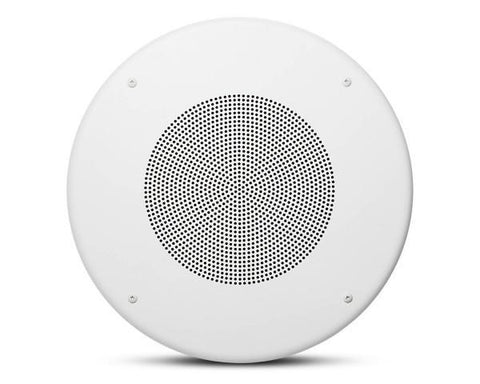

JBL CSS8018 8" Speaker

JBL CSS8018 8" Speaker

JBL1100

JBL

  • £49.00
Usually shipped within 2-3 working days

JBL’s Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.

Main Features

  • JBLCSS8018 8" Low Cost Ceiling Speaker
  • Very high 97 dB sensitivity
  • 10 Watt multi-tap transformer for 100V, 70V and 25V distributed lines
  • Fits CSS-BB8 backcan
  • Excellent performance for paging and background music applications
  • Maximum sound level, even at low tap settings

Product Specifications

General

  • Driver Size (dual-cone): 200 mm (8 in)
  • Driver Sensitivity (mid-range) (1W [2.83V], 1m, 2k – 6k Hz): 97 dB
  • Frequency Range (-10 dB) Driver/Grille Assembly: 50 Hz – 17 kHz
  • Installed in CSS-BB backcan: 90 Hz – 17 kHz
  • Coverage (2 kHz): 110°
  • Driver Continuous Power Handling: 20 Watts
  • 100V Taps: 10W, 5W, 2.5W
  • 70V Taps: 10W, 5W, 2.5W, 1.3W
  • 25V Taps: 10W, 5W, 2.5W, 1.3W
  • Transformer Insertion Loss: 1.5 dB Maximum
  • Transformer Connection: Bare wire
  • Motor Mass: 283 g (10 oz)
  • Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
  • Matching CSS Backcan: CSS-BB8 (0.15 cu ft)
  • Other Compatible Backcans:
    • MTC-81BB8 (0.26 cu ft)
    • MTC-200BB6 (0.5 cu ft)
    • MTC-300BB8 (1.0 cu ft)

Physical & Dimensions

  • Bolt Mounting Circle to Backcan: 4 points on 286mm diameter
  • Cutout Diameter Open-back: 216mm
  • In CSS-BB backcan: 295mm
  • Depth (behind grille): 73mm
  • Grille Diameter: 327mm
  • Net Weight (ea): 1.58kg
  • Shipping Weight (ea): 2.25kg

                                  Manufacturer: JBL
