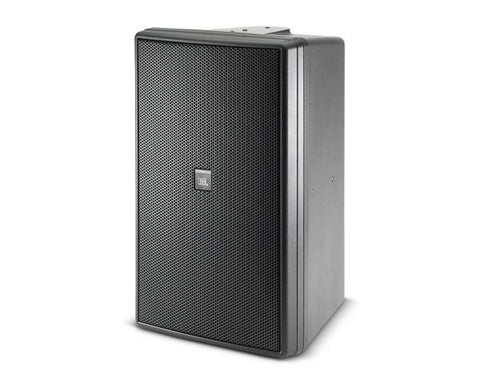

JBL Control 30 10" Speaker

JBL Control 30 10" Speaker

JBL0116

JBL

  • £889.00
Usually shipped within 2-3 working days

The Control 30 utilises high power components, computer optimised horn and coaxial component design, patent-pending cabinet manufacturing techniques, and a complex network to achieve smooth high fidelity performance, extended bandwidth and well-controlled, defined coverage from a compact loudspeaker.

Main Features

  • JBL CONTROL 30 Control Series 3-Way 10-Inch High-Fidelity
  • High-Output System Speaker, Black, Outdoor-rated
  • 250 Watts power capability
  • Includes InvisiBall mounting hardware
  • Plus ten 6 mm attachment points for suspension
  • Optional U-bracket
  • In Black
  • Priced and Sold Individually

Product Specifications

General

  • Frequency Range: 38 Hz – 17 kHz (-10 dB)
  • Power Capacity: 500 W Continuous Program Power; 250 W Continuous Pink Noise
  • Transformer Taps:
    • 70 V: 150 W, 75 W, 38 W, 19 W
    • 100 V: 150 W, 75 W, 38 W
  • Thru Position: 4 ohms nominal
  • Frequency Response: 40 Hz – 16 kHz ( ± 3 dB)
  • Maximum SPL @ 1m: Short-Term: 123 dB; Long-Term: 117 dB
  • Nominal Sensitivity: 93 dB, 1W @ 1m (3.3 ft)
  • Nominal Coverage Angle: 120° H x 110° V
  • Directivity Factor (Q): 5.2 dB, averaged 500 Hz to 10 kHz
  • Directivity Index (DI): 7.1 dB, averaged 500 Hz to 10 kHz
  • Nominal Impedance: 4 ohms
  • Crossover Network: 3rd order Low Pass LF, 2nd order High Pass/3rd order Low Pass MF, 3rd order High Pass, HF, plus conjugate shaping circuitry.
  • Low Frequency: 250 mm (10 in) fiberglass/Kevlar® cone with pure butyl rubber surround, 50 mm (2 in) voice coil on fiberglass former, neodymium magnet
  • Mid Frequency: 125 mm (5 in) anodized aluminum cone with EPDM rubber (Terpolymer of Ethylene and Propylene) surround, 25 mm (1 in) voice coil on fiberglass former
  • High Frequency: 25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround
  • Enclosure Material: High Impact PolyStyrene (HIPS) with 10% glass fill plus patent pending internal 5 mm foamed polyurethane secondary mold
  • Grille: Thermoset composite coated steel, WeatherMax multi-layer foam
  • Overload Protection: SonicGuard full range power limiting to protect network and transducers.
  • Environmental: IEC 529 IP-X5 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray.
  • Terminations: Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open
  • Safety Agency Rating: Transformer is listed per UL1876

Physical & Dimensions

  • Height: 593mm
  • Width: 372mm
  • Depth: 345mm
  • Weight: 18.9kg

      Manufacturer: JBL
