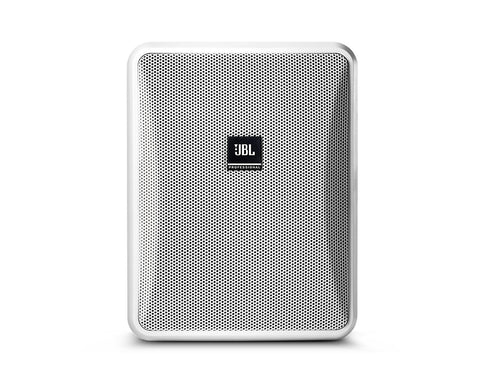

JBL Control 25-1L-WH 5.25" Speaker

JBL Control 25-1L-WH 5.25" Speaker



  • £252.00
Usually shipped within 2-3 working days

The Control 25-1L in white is a two-way 5-¼” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors.

This makes Control 25-1L an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.

Main Features

  • 5-¼” woofer with woven fiberglass cone
  • 3/4” PEI diaphragm tweeter with fluid cooling
  • Contemporary, high-design appearance
  • Built-in InvisiBall® mounting hardware, plus available U-bracket
  • Weather resistant enclosure and transducers
  • Wide 100° x 100° coverage
  • Priced and Sold Individually

Product Specifications


  • Frequency Response (-10dB):  60 Hz to 20 kHz
  • Frequency Response (±3 dB):  85Hz - 17 kHz
  • Power Rating:  200 W Continuous Program (2 hrs)
  • Maximum Input Voltage:  25.3 V RMS (2 hrs), 50.6 V peak
  • Maximum SPL (1m):  110 dB ave. Continuous Pink Noise (116 dB peak
  • Sensitivity (1W, 1m):  90 dB, 1W/1m (ave. 100 Hz – 10 kHz) *Half-space (on-wall) averaged 100 Hz – 10 kHz, 2.83V.
  • Coverage Angle:  100° x 100° *Coverage angle (-6 dB) average between 1 kHz and 12 kHz.
  • Directivity Factor (Q):  6.04 (averaged 1kHz – 16kHz)
  • Directivity Index (DI):  7.6dB (averaged 1kHz – 16kHz)
  • Impedance:  8 ohms
  • Crossover Type:  2nd order low-pass, 3rd order high-pass
  • Recommended Protective High-Pass:  60 Hz high-pass (24 dB/oct)
  • Drivers:
    • LF: 135 mm (5.25 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
    • HF: 19 mm (0.75 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
  • Enclosure:  High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
  • Grille:  Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-25WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
  • Outdoor Capability:  IP-44 per IEC529 (IP-55 when installed with the optional MTC-25WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.)
  • Safety Agency:  ROHS-compliant


  • Colours:  White (-WH, RAL9016)
  • Dimensions (H x W x D):  243 x 188 x 145 mm (9.6 x 7.4 x 5.7 in); 203 mm (8.0 in) deep total when mounted on InvisiBall wall-mount bracket.
  • Net Weight (each):  3.0 kg (6.7 lbs)
  • Shipping Weight:  7.3 kg (16.0 lbs) for the pair-pack (for 2 speakers)

                                          Manufacturer: JBL
