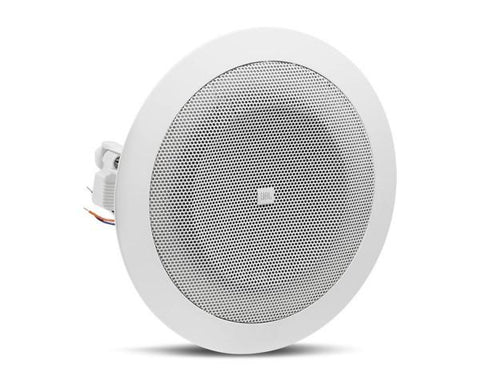

JBL 8124 4" Speaker 100V/6W

JBL 8124 4" Speaker 100V/6W



  • £45.00
Usually shipped within 2-3 working days

The 8124 is a 4-inch, full-range, cost-effective loudspeaker for commercial applications and features high-fidelity performance in an easy to install package.

The system’s high sensitivity drivers deliver maximum sound levels using minimal amplifier power. With its contemporary grill design, 70V/100V taps and an open-back design, the 8100 series brings elegance and performance to basic commercial sound systems, or any application not requiring a backcan for installation.

Main Features

  • Clear, High-Fidelity Performance
  • Dog-ears for easy Blind Mount Installations
  • High Sensitivity (93 dB, 1W, 1m) for Maximum Power Efficiency
  • 6W Transformer for use of 70V / 100V Distributed Lines
  • Suitable for most paging or background music applications
  • Very high sensitivity provides maximum sound levels using minimal amp power

Product Specifications


  • Component: 4 in (100 mm), Full-range Driver
  • Frequency Range: 60 Hz – 18 kHz
  • Sensitivity: 93 dB (1 kHz – 8 kHz), 1W, 1M
  • Coverage: 130° conical
  • 70V/100V Taps: 6W, 3W, 1.5W (0.75W at 70V only)
  • Termination: Bare wires

Physical & Dimensions

  • Diameter: 206mm
  • Depth: 89mm
  • Weight: 1.2kg

                                                    Manufacturer: JBL
