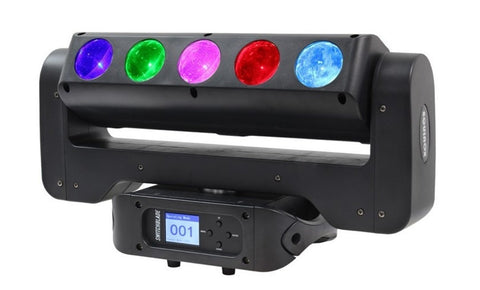

Equinox Switchblade

Equinox Switchblade

EQLED019

Equinox

Usually shipped within 2-3 working days

Incorporating a beam and strobe/wash effect, the Switchblade does it all.

One side of the sleek bar features five pixel mappable beams with an 8° beam angle whilst the other has 250 tri-colour LEDs controllable over five zones which strobe/wash to fill venues with blinding effects in any colour.

Infinite pan and tilt with lightning quick movements along with razor sharp beams create awesome aerial effects.

FEATURES:

Beam optics:
  • 5 x 40W quad-colour LEDs (RGBW)
  • Beam angle: 8°
  • 15,558 Lux @ 2m (per LED, full on)
  • 16kHz refresh rate
Strobe optics:
  • 250 tri-colour 5050 SMD LEDs (RGB)
  • Beam angle: 160°
  • 183 Lux @ 2m (full on)
  • 500Hz refresh rate
  • Individually controllable LEDs (beams)/zones (strobe)
  • DMX channels: 2/15/23 or 48 selectable
  • Auto, sound active and master/slave modes
  • Pan/tilt auto correction
  • 16 bit pan/tilt positioning
  • 360° continuous pan and tilt
  • 0-100% dimming and variable strobe
  • Supplied with quick release omega clamp
  • 4 push button menu with 2.5” LCD display
  • PowerCON input/output
  • 5-Pin XLR input/output
  • Fan cooled

      SPECIFICATION:

      • Power consumption: 265W
      • Power supply: 100~240V, 50/60Hz
      • Fuse: F5A 250V
      • Dimensions: 305 x 532 x 183mm
      • Weight: 11.2kg

          Manufacturer: Equinox
