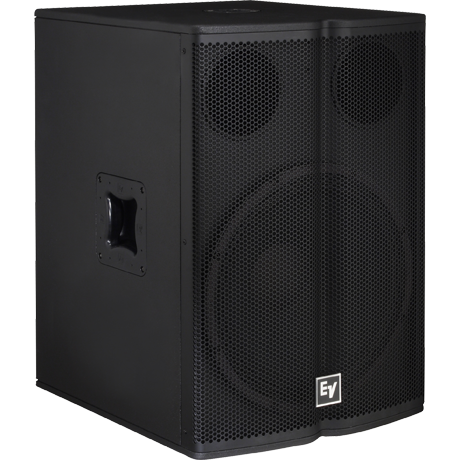

Electro-Voice TX1181 18" Passive Sub

The Electro-Voice TX1181 is a high power 18" subwoofer that can be used to extend the low frequency performance of the TX1122 and TX1152 loudspeaker systems.

Main Features

• High-power LF supplement to TX1122 and TX1152
• High-excursion EVS-18S woofer
• 6 dB/octave low-pass filter for parallel connection without added amp
• Top-side socket for speaker pole
• Mount points (6) for optional wheel kit
• Braced plywood/MDF enclosure

Specification

General

• Enclosure Material: Plywood and MDF with EVCOAT
• Family: Tour X
• Flying: No
• Frequency Response (-10 dB): 45 - 700 Hz
• Frequency Response (-3 dB): 50 - 160 Hz
• Input Connections: Parallel Neutrik® NL4
• Internal Crossover: Low-pass filter
• LF Transducer: 18-inch EVS18S
• Max. SPL/1m (calc): 132 dB
• Minimum Impedance: 7.5Ω
• Nominal Impedance (Passive): 8Ω
• Power Rating: 2000W
• Powered or Passive: Passive
• Recommended High-Pass Frequency: 30Hz
• Sensitivity 1 W/1 m: 100dB
• Speaker Type: Subwoofer
• System Power Handling (Continuous/Program/Peak): 500//2000 Watts

Physical & Dimensions

• Height: 769mm
• Width: 508mm
• Depth: 591mm
• Weight: 33.8kg

Manufacturer: Electro-Voice
