Electro-Voice EVID C10.1 10" Sub

Electro-Voice EVID C10.1 10" Sub

F.01U.117.589

Electro-Voice

  • £179.00
Usually shipped within 2-3 working days

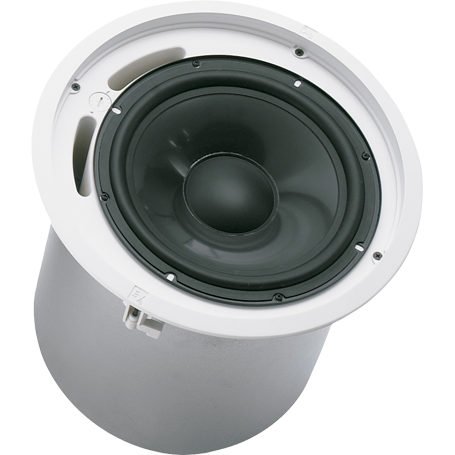

The Electro-Voice ® EVID C10.1 loudspeaker system is a complete low frequency ceiling subwoofer package.

Designed to augment the low frequency response of any EVID ceiling speaker. The package consists of a bezel assembly, grille, rear enclosure, 10-inch loudspeaker and internal line-matching transformer.

The EVID C10.1 loudspeaker utilises a 2nd order crossover network to provide the correct bandpass frequency response for use with any EVID Ceiling loud speaker.

Main Features

  • Supplemental LF for ceiling systems
  • High-excursion woofer in ported enclosure for extended lows
  • Low pass network with overload protection
  • Integrated transformer for 70 V, 100 V, or 8 Ω use
  • Front-panel mode/wattage selector
  • Internally damped heavy-gauge steel enclosure
  • Safe, easy installation with included tile bridge and mounting ring
  • White semi-gloss perforated grille
  • Complete package, requires no additional accessories
  • In White
  • Priced and Sold Individually

Specifications

Chassis Size 254 mm (10")
Colour White (paintable surface)
Coverage (Nominal -6 dB) 180
Diameter (Max) 320 mm (12.6")
Input Formats 8 Ω, 70 V, 100 V
Mounting Systems Integrated 3-point toggle anchors
Speaker Type Dual ported cabinet, internally damped
Transformer Yes
Transformer Taps (Transformer Version Only) (7.5 - 70 V only), 15, 30, 60
Frequency Response (-10 dB) 45 - 180 Hz
Sensitivity 1 W/1 m 94 dB
Max. SPL/1m (calc) 122 dB
System Power Handling (Continuous/Program/Peak) 150 Watts
LF Transducer 10-inch polypropylene cone
Enclosure Material Steel enclosure and UL94V-0 rated baffle and bezel
Flying No
Outdoor No
Grill Powder-coated steel
Height 303 mm (11.93")
Weight Net 7 kg (15.43 lbs)

      Manufacturer: Electro-Voice
