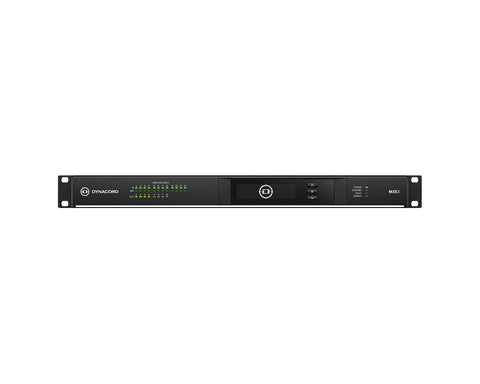

Dynacord MXE5 Matrix Mix Engine

F.01U.335.530 - Special Order Item


  • £2,995.00
Usually shipped within 2-3 working days

The MXE5 is the first member of the MXE matrix mix engine series. The 24 x 24 crosspoint performance audio matrix offers both routing and mixing functionalities, with 12 analogue mic/line inputs and eight line outputs.

At the same time, the MXE5 serves as a communications hub for all IP-based peripherals and provides comprehensive supervision of all system-wide commands.

Delivering the highest audio quality

The MXE5 benefits from advanced DSP, providing outstanding audio quality and dynamic range. This is ensured by a sampling rate of 96 kHz and the industry’s lowest audio latency of less than 0.22 ms.

Ready for a wide range of applications

The MXE5 is designed for consultants, production companies, specifiers and system integrators who demand the highest-quality BGM and uncompromising live performance sound.

Built on comprehensive software

The MXE5 integrates completely with Dynacord’s SONICUE sound system software, one of the most powerful software interfaces in the industry, offering comprehensive control and easy, intuitive operation.

Thanks to SONICUE, the MXE5 can be assigned with personalization features, rights management and GPIO configuration. The optional TPC-1 touch panel controller has a low-profile form factor and features Example interfaces a 5.7” HD display.

Made for mixing and routing

The MXE5 offers a variety of functions beyond being a powerful crosspoint matrix; it also works as both a system manager and an OCA controller with complete monitoring and supervision abilities.



  • Matrix Size: 24 x 24
  • Sampling Rate: 48 kHz /96 kHz
  • DANTE IN/OUT: 24/24
  • Analog Inputs: 12 mic/line
  • Analog Outputs: 8
  • Max. Input/Output Level: + 22 dBu
  • Signal to Noise Ratio (Inputs / Outputs): > 118 dB
  • Signal Processing: 32/40-bit floating point
  • THD+N: < 0.002 %
  • Crosstalk: < -80 dB
  • Latency (Analogue IN/OUT, 48 KHZ / 96 KHZ): < 0.45 ms / < 0.22 ms
  • Control Ports: 8 GPIO

Physical & Dimensions

  • Dimensions (W X H X D): 483 x 43.5 x 471 mm (19", 1 RU)
  • Weight: 6.0 kg (13.2 lbs)

            Manufacturer: Dynacord
