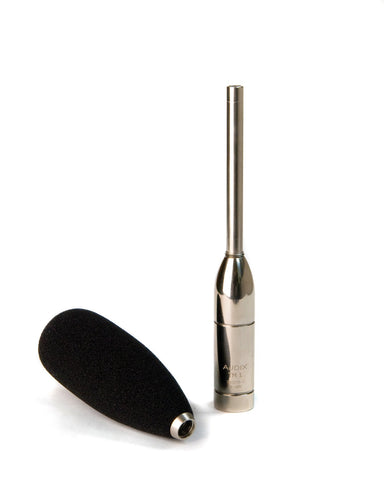

Audix TM1 PLUS Measurement Mic
AX-TM1/PLUSThe TM1 is a 6 mm pre-polarised condenser microphone used for test and measurement applications.
It's also known for its linearity, accurate response, consistency, ease of use and affordability.
Equipped with a uniformly controlled omnidirectional polar pattern, the TM1 is designed to capture acoustic measurements for room analysis software programs, real time analysers and other sound control devices.
With a flat frequency range of 20 Hz – 25 kHz, the TM1 is an excellent tool for sound engineers, sound companies and recording enthusiasts.
The TM1 PLUS includes calibration data file and sensitivity, threaded acoustic windscreen, and CA4231 machined calibration adapter *
*Bruel & Kjaer® 4231 sound level calibrator or equivalent
Applications:
- Test and measurement
- Room analysis software programs
- Real time analysers
- Ambient room miking
Specifications:
Type | Pre-polarised Condenser |
---|---|
Polar Pattern | Omni-directional |
Frequency Response | 20Hz - 25kHz +/-2 dB |
Impedance | 200 Ohms |
Sensitivity | 6 mV/Pa @1k |
Manufacturer: Audix
