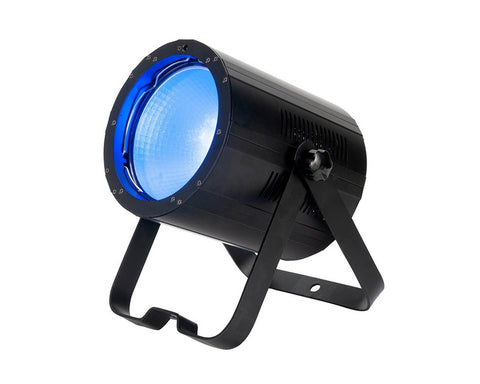

ADJ COB Cannon Wash ST - Black1223200050
ADJ COB Cannon Wash ST in black is a shorter version of the popular COB Cannon Wash fixture. It uses advanced RGBA COB (Chip on Board) technology allowing for a powerful LED engine to be placed in a small amount of space.
The result is a high output, smooth colour mixing LED Par with no RGBA shadows. Designed for mobile or permanent wash lighting of stages, clubs, dance floors and churches. The COB LED engine on the COB Cannon Wash ST is a QUAD RGBA 4-In-1). It also doubles as an uplight with its scissor yoke that act as legs to set the fixture upright to wash walls and ceilings.
The COB Cannon Wash ST comes in a black casing and has massive 80-degree beam angle. Easily replaceable 40-degree and 50-degree lens are included so that the beam angle may be changed.
It has 7 DMX Channel modes for programming flexibility, built-in colour macros and 5 selectable Dim Curves. The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, Flicker Free operation, 3-pin & 5-pin DMX and powerCON power daisy-chaining, and a 4-button DMX display. COB Cannon Wash ST may run in its stand-alone mode from built-in programs, sound actively or from a DMX controller.
- Advanced RGBA COB (Chip on Board) technology
- A powerful LED engine
- A high output, smooth colour mixing LED Par with no RGBA shadows
- Designed for mobile or permanent wash lighting of stages, clubs, dance floors and churches.
- Doubles as an uplight
- Comes in Black or Pearl
- Massive 80-degree beam angle
- Easily replaceable 40-degree and 50-degree lens are included
- 7 DMX Channel modes
- Built-in colour macros
- 5 selectable Dim Curves
- 0-100% electronic dimming
- Strobe/pulse effect
- Flicker Free operation
- 3-pin & 5-pin DMX
- PowerCON power daisy-chaining
- 4-button DMX display
- In Black
- Light Source: 1x 150-Watt COB (Chip on Board) Quad LED (RGBA: 4-IN-1, rated at approximately 50,000 hrs)
- Light Output: 1970 LUX @2M; 474 LUX @4M (40-degree beam), 1472 LUX @2M; 373 LUX @ 4M (50-degree beam), 996 LUX @2M; 238 LUX @4M (80-degree beam)
- 80-degree beam angle
- Includes lens kit to change to 40-degrees or 50-degrees beam angle
- 3-pin & 5-pin connectors for DMX linking
- powerCon AC IN/OUT to daisy chain power (up to 3 fixtures)
- 7 DMX Channel modes (3,4,5,6,7,9,10 Ch.)
- 64 built-in colour macros
- 4-button digital DMX display on rear panel
- Compatible with the ADJ UC IR remote control (sold separately)
- LED pulse and strobe effect
- Electronic Dimming: 0 - 100%
- 6 selectable Dim Curves (Standard, Stage, TV,
- Architectural & Theatre)
- Refresh Rate:1KHz
- Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
- Power Draw: 132W max
- Daisy chain up to 5 fixtures maximum
Dimensions / Weight:
- Dimensions (LxWxH): 13” x 10” x 7.5” / 330x256x190mm (With bracket)
- Dimensions (LxWxH): 8.75” x 7.5” x 7.5” / 218.5x190x190mm (Without bracket)
- Weight: 9 lbs. / 4.1 kg.
