Yamaha RSio64-D Dante/Mini-YGDAI

Yamaha RSio64-D Dante/Mini-YGDAI

RSIo64-D

Yamaha

  • £2,149.00
Usually shipped within 2-3 working days

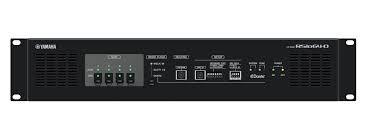

The RSio64-D is an audio interface that can convert between Dante and Mini-YGDAI formats for up to 64 inputs and 64 outputs.

It provides versatile routing capability as well. Four Mini-YGDAI card slots allow cards for a wide variety of input/output formats as well as processing functions to be connected to a Dante network for live sound, broadcast, recording, post production, and other applications.

FEATURES:

  • Accepts a wide range of Mini-YGDAI input/output and processing cards
  • Seven general routing presets, including routing between Mini-YGDAI cards
  • Supports matrix patching from R Remote V3 or a CL/QL series console
  • Sample rate converters for all four Mini-YGDAI slots
  • EXT DC INPUT for redundant power supplies
  • Supports Dante redundancy (primary/secondary)

    SPECIFICATION:

    General

    • Sampling frequency rate (External): 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 88.2kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 96kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)
    • SRC
    • SRC Lock Range: 39.7 kHz - 101.7 kHz
    • Sample Rate Ratio Limit: 1:2.6 to 2.6:1
    • Power requirements: 100-240 V 50/60 Hz
    • Power consumption: 60 W
    • Operating temperature range: 0 - 40 degrees
    • Storage temperature range: -20 - 60 degrees

    Physical & Dimensions

    • Height: 88mm
    • Width: 480mm
    • Depth: 365mm
    • Weight: 6.1kg

    Manufacturer: Yamaha
