Transcension S 8 DMX Distribution Splitter

Transcension S 8 DMX Distribution Splitter



  • £85.00
Usually shipped within 2-3 working days

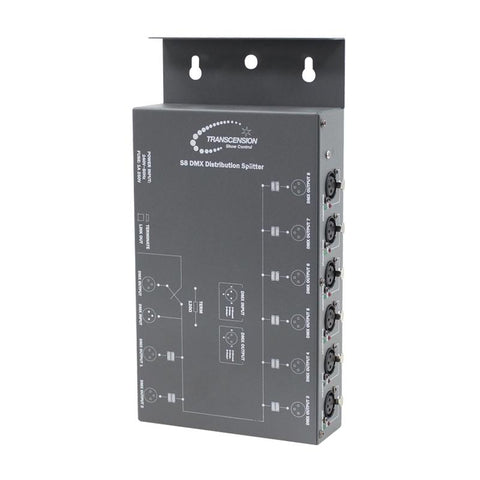

The Transcension S 8 DMX Distribution Splitter is an eight way DMX distribution splitter featuring one input, link output and eight outputs each electronically isolated from both each other and from the input.

The S 8 can be used to simplify DMX cabling allowing lighting systems to be cabled in a star form at while working to prevent data errors. Each of the eight outputs features an independent driver coupled with DC and DMX indicator LEDs.

Housed within a compact, steel chassis the unit is ideally suited to mobile applications, and also features a number of holes suitable for truss clamps or wall mounting.


  • 8 x 3-Pin XLR outputs
  • Link output with switchable termination facility
  • Sturdy, steel chassis with multiple mounting options
  • IEC power input


    • Power supply: 240V, 50Hz
    • Fuse: 1A 250V
    • Dimensions: 315 x 175 x 60mm
    • Weight: 2.1kg

                                                        Manufacturer: Transcension
