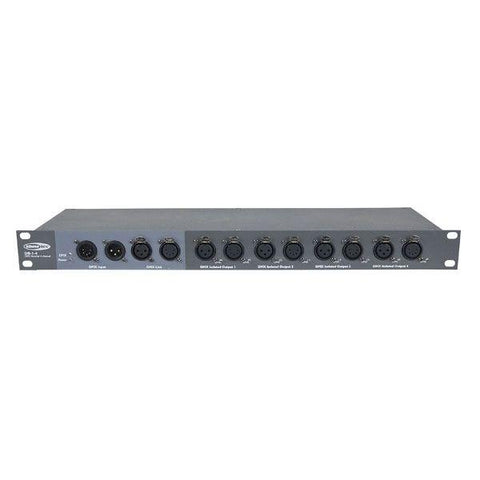

The Showtec DB-1-4 is a universal DMX-512 splitter designed to distribute the incoming DMX signal in daisy chain configurations, into multiple separate outputs with an additional “Trough” port.
Can be mounted in any 19” rack or into the truss by the M10 nut on the rear end of the unit. It has clear LEDs to show the DMX signal status of each output and input.
There are four models available, DB-1-4 with or without RDM which has 4 outputs and 3 & 5 Pole XLR connectors, and the DB-1-8 with or without RDM which has 8 outputs with 3P XLR connectors.
- DMX splitter for 4 outputs
- Electrical isolation between in and output
- DMX Indication LEDs on in-& outputs
- 3 & 5P XLR in & outputs
- M10 nut at backside for truss clamp
