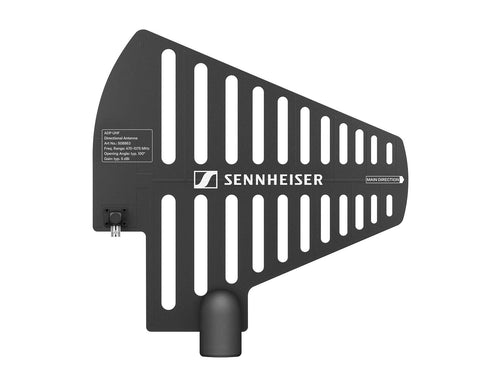

Sennheiser ADP UHF Antenna

The Sennheiser EW-D ADP UHF Directional Antenna (470-1075MHZ) Passive external directional antenna for Evolution Wireless.

FEATURES

• Passive external directional antenna
• Perfect for Sennheiser Evolution Wireless Digital
• UHF transmission greatly enhances range, reliability and scalability
• Built-in ⅝" and ⅜" threads allow for easy mic stand mounting
• 470-1075MHZ
• Finish: Black

SPECIFICATION

• Frequency range:  470 – 1075 MHz
• Apex angle (-3 dB):  approx. 100°
• Front-to-back ratio:  > 14 dB
• Gain:  typ. 5 dBi
• Impedance:  50 Ω
• Connection:  BNC female, no DC path
• Threads for tripod mounting:  3/8" and 5/8"
• Dimensions:  319 x 310 mm
• Weight:  approx. 320 g
• Operating temperature range:  -10 to + 55 °C (14 to 131 °F)
• Storage temperature range:  -20 to + 85 °C (-4 to 185 °F)
• Relative humidity:  max. 95 % non-condensing

Manufacturer: Sennheiser
