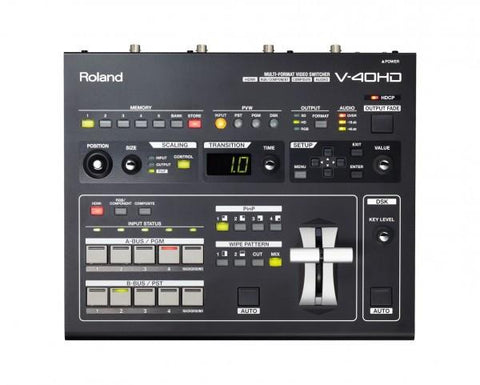

Roland V-40HD Video Switcher

Roland V-40HD Video Switcher

V-40HD

Roland

  • £2,749.00
Usually shipped within 2-3 working days

The Roland V-40HD Multi-Format Live Video Switcher is a welcomed addition to the powerful V-1600HD and V-800HD model lineup.

The V-40HD Live Video Switcher is ideal for any live event or installation that requires the freedom to connect a variety of sources whether they be digital or analogue, computer or video format. It is particularly positioned to support configurations using popular HDMI cameras as well as computers.

FEATURES:

  • 4 Channels (12 Inputs - 4 x HDMI, RGB/Component, Composite),
  • 3 Outputs (HDMI/RGB/Component/Composite+HDMI/RGB/Component + HDMI)
  • 4:4:4/10-bit Internal Processing (*4:2:2/8-bit Output Processing)
  • 1 M/E (PinP) + DSK
  • Built-in frame synchronizers and scalers on all inputs
  • Input status LEDs
  • Full HDCP support
  • Preview monitor output (Four-way split screen for Inputs, PST, PGM, or DSK)
  • Audio embedding
  • Audio delay to align the timing with video for perfect lip sync

SPECIFICATION:

Video Processing

  • Sampling rate: 4:4:4 (Y/Pb/Pr), 10 bits *Output signal processing is 4:2:2/8-bit.
  • Audio processing: 24 bits/48 kHz, 2ch

Input Formats

  • HDMI video:
    • 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
    • 640 x 480/60 Hz, 800 x 600/60 Hz, 1024 x 768/60 Hz, 1280 x 768/60 Hz, 1280 x 1024/60 Hz, 1366 x 768/60 Hz, 1400 x 1050/60 Hz, 1600 x 1200/60 Hz, 1920 x 1080/60 Hz, 1920 x 1200/60 Hz
  • HDMI audio: Linear PCM, 24 bits/48 kHz, 2ch
  • RGB/ Component:
    • 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
    • 640 x 480/60 Hz, 800 x 600/60 Hz, 1024 x 768/60 Hz, 1280 x 768/60 Hz, 1280 x 1024/60 Hz, 1366 x 768/60 Hz, 1400 x 1050/60 Hz, 1600 x 1200/60 Hz, 1920 x 1080/60 Hz, 1920 x 1200/60 Hz
  • Composite: NTSC, PAL

* The video signal frame rate must match with the unit’s frame rate setting.

* Conforms to VESA DMT Version 1.0 Revision 11.

* 1920 x 1200/60Hz : Reduced blanking

Output Formats

  • HDMI video
    • 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
    • 640 x 480/60 Hz, 800 x 600/60 Hz, 1024 x 768/60 Hz, 1280 x 768/60 Hz, 1280 x 1024/60 Hz, 1366 x 768/60 Hz, 1400 x 1050/60 Hz, 1600 x 1200/60 Hz, 1920 x 1200/60 Hz
  • HDMI audio: Linear PCM, 24 bits/48 kHz, 2ch
  • RGB/ Component:
    • 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94p, 1080/50p
    • 640 x 480/60 Hz, 800 x 600/60 Hz, 1024 x 768/60 Hz, 1280 x 768/60 Hz, 1280 x 1024/60 Hz, 1366 x 768/60 Hz, 1400 x 1050/60 Hz, 1600 x 1200/60 Hz, 1920 x 1200/60 Hz
  • Composite: NTSC, PAL
  • Preview (HDMI): Video: 1920 x 1080/60 Hz (fixed)

* The output refresh rates of 640 x 480--1400 x 1050 are 75 Hz when the unit’s frame rate setting is 50 Hz.

* Conforms to VESA DMT Version 1.0 Revision 11.

* 1920 x 1200/60Hz: Reduced blanking

*When INPUT is selected, the sources are displayed using a reduced frame rate. Audio: Linear PCM, 24 bits/48 kHz, 2ch

Input Jacks

  • Video/Audio
    • HDMI: Type A (19 pins) x 4 ( INPUT 1--4)
    • RGB/Component: HD DB-15 type x 4 ( INPUT 1--4)
    • Composite: BNC type x 4 (INPUT 1--4)
  • Audio: 1/4-inch TRS phone type ( balanced/unbalanced) x 1 pair ( AUDIO INPUT)

Output Jacks

  • Video/Audio:
    • HDMI: Type A (19 pins) x 2 (OUTPUT 1/2)
    • RGB/Component: HD DB-15 type x 2 (OUTPUT 1/2)
    • Composite: BNC type x 1 (OUTPUT 1)
  • Preview: HDMI: Type A (19 pins) x 1

Other Jacks

  • Tally: HD DB-15 type x 1
  • MIDI: 5 pins DIN type x 2 ( IN, OUT/THRU)
  • RS-232C: 9 pins D-sub type x 1
  • USB: A type x 1 ( host, for USB memories )

Signal Level/Impedance

  • RGB/ Component:
    • Signal level: 0.7Vp-p( H,V:5VTTL)
    • Impedance: 75 ohms
  • Composite:
    • Signal level: 1.0 Vp-p ( luminance), 0.286 Vp-p (chroma(NTSC) ), 0.3 Vp-p (chroma(PAL))
    • Impedance: 75 ohms
  • Analog Audio:
    • Nominal input level: +4 dBu Maximum Input Level: +22 dBu
    • Impedance: 15 k ohms

Video Effects

  • Transition: Mix, Cut, Wipe ( 9 patterns )
  • Composition:
    • Picture in Picture
    • DSK (Luminance Key, Chroma Key)
  • Others: Output Fade

Audio Effects

  • Delay: 0.0-12.0 frames

General

  • Display: 7 segments, 3 characters LED
  • Power Supply: DC 12 V (AC Adaptor)
  • Current Draw 2.6A

Physical & Dimensions

  • Width: 317mm
  • Depth: 266mm
  • Height: 108mm
  • Weight: 3.4kg

    Manufacturer: Roland
