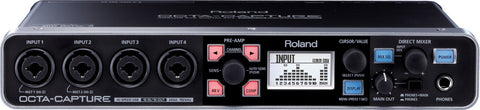

Roland Octa-Capture UA-1010

UA1010

Roland

  • £479.00
Usually shipped within 2-3 working days

The Octa-Capture UA-1010 has ten inputs, ten outputs, and eight VS PREAMPS with transparent 24-bit/192 kHz audio quality.

High-level audio production comes easy with this fusion of premium components, Roland-quality engineering, and proprietary preamp and streaming technology.

FEATURES:

  • Eight premium mic preamps built in (VS PREAMP)
  • AUTO-SENS function intelligently sets optimal input levels for all preamps
  • Extremely stable low-latency VS STREAMING driver
  • Four independent software-controlled Direct Mixers for creating custom monitor mixes
  • Supports all major DAW platforms on Mac or PC, including OSX 10.6 and Windows 7, through ASIO 2.0/WDM (Windows) and Core Audio (Mac) drivers
  • Rackmount ears included

SPECIFICATION:

NUMBER OF AUDIO RECORD/PLAYBACK CHANNELS

  • 44.1/48/96 kHzRecord: 10 channels
  • Playback: 10 channels192 kHzRecord: 4 channels
  • Playback: 4 channels

SIGNAL PROCESSING

  • PC interface: 24 bits
  • AD/DA Conversion: 24 bits
  • Internal: 40 bits

SAMPLING FREQUENCY

  • AD/DA Conversion44.1/48/96/192 kHz
  • DIGITAL (IN/OUT)44.1/48/96 kHz

NOMINAL INPUT LEVEL

  • Input Jack 1—6 (XLR type): -56 to -6 dBu
  • Input Jack 7—8 (XLR type)-50 to +0 dBu
  • Input Jack 1—8 (1/4 inch TRS phone type)-46 to +4 dBu

NOMINAL OUTPUT LEVEL

  • OUTPUT 1—8+0 dBu (balanced)

INPUT IMPEDANCE

  • Input Jack 1—6 (XLR type): 5 k ohms (balanced)
  • Input Jack 7—8 (XLR type): 10 k ohms (balanced)
  • Input Jack 1—8 (1/4 inch TRS phone type): 17 k ohms (balanced)

OUTPUT IMPEDANCE

  • OUTPUT 1—8: 1.8 k ohms (balanced)
  • PHONES: 47 ohms

FREQUENCY RESPONSE

  • 192.0 kHz:
    • 20 Hz to 90 kHz (+0/-8 dB)
    • 20 Hz to 60 kHz (+0/-2 dB)
  • 96.0 kHz:
    • 20 Hz to 40 kHz (+0/-2 dB)
  • 48.0 kHz
    • 20 Hz to 22 kHz (+0/-2 dB)
  • 44.1 kHz:
    • 20 Hz to 20 kHz (+0/-2 dB)

RESIDUAL NOISE LEVEL

  • MAIN OUT: -87 dBu typ. (GAIN:min., INPUT 1 — 2 terminated with 600 ohms , IHF-A)
  • Stereo Link: ON, Input channel fader: Unity

* Internal Direct Monitor Mixer setting

DYNAMIC RANGE

  • AD block: INPUT 1—8: 104 dB typ. (GAIN: min.)
  • DA block: OUTPUT 1—8: 113 dB typ.

CONNECTORS

  • Input Jacks 1—8 (XLR type / 1/4 inch TRS phone type)
  • XLR type (balanced / phantom power +48 V)
  • 1/4 inch TRS phone type (balanced)
  • Coaxial Input Connector
  • Coaxial Output Connector
  • Headphones Jack (Stereo 1/4 inch phone type)
  • Output Jack 1—8 (1/4 inch TRS phone type (balanced))
  • MIDI Connectors (In, Out)
  • USB Connector

Other

  • Power Supply: DC 9 V (AC adaptor)
  • Current Draw: 1.45 A
  • Display: 128 x 64 dots Graphic LCD (backlit LCD)

Physical & Dimensions

  • Width 284mm
  • Depth 158mm
  • Height 50mm
  • Weight 1.3kg

Manufacturer: Roland
