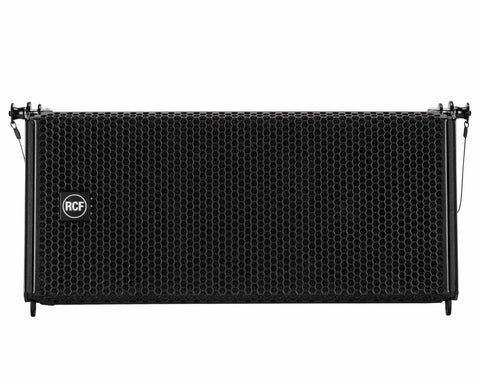

RCF HDL 6-A Active Line Array Module

13000496

RCF

  • £1,175.00
Usually shipped within 2-3 working days

The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must.

A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection.

The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic.

FEATURES:

  • 1400 W, two-way amplification
  • 131 dB max SPL
  • 1.7" voice coil neodymium compression driver
  • 2 x high power neodymium 6.0" woofers
  • 48 kHz, 32 bit floating point DSP processing
  • Symmetrical design
  • Extremely low weight
  • FiRPHASE processing

SPECIFICATION:

  • Frequency Response: 65 Hz - 20000 Hz
  • Max SPL @ 1m: 131 dB
  • Horizontal coverage angle: 100°
  • Vertical coverage angle: 10°
  • Compression Driver: 1.0'' neo, 1.75'' v.c
  • Woofer: 2 x 6.0'' neo, 2.0'' v.c
  • Input signal: bal/unbal
  • Input connectors: XLR
  • Output connectors: XLR
  • Input sensitivity: +4 dBu
  • Crossover Frequencies: 900 Hz
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter
  • Controls: HF correction
  • Total Power: 1400 W Peak, 700 W RMS
  • High frequencies: 400 W Peak, 200 W RMS
  • Low frequencies: 1000 W Peak, 500 W RMS
  • Cooling: Convection
  • Connections: Powercon IN/OUT
  • CE marking: Yes
  • Cabinet/Case Material: PP Composite
  • Hardware: Array fittings
  • Handles: 2 Back
  • Grille: Steel
  • Color: Black

Physical & Dimensions

  • Height: 237mm
  • Width: 470mm
  • Depth: 377mm
  • Weight: 11.6kg
        Manufacturer: RCF
