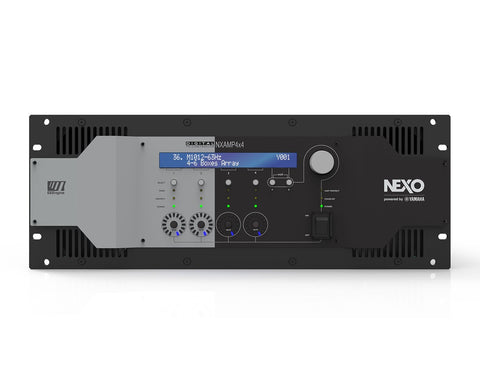

Nexo NXAMP4x4C MK2 Power AmplifierNXAMP4X4C
The NXAMP 4X4C MK2 Powered TDcontroller comes available in a 4-channel size and produces an output capacity of 4x4000W under 2Ω, establishing the 4x4 model as one of the most powerful amplifiers to ever be produced.
This model will permit the users to connect a large number of NEXO speaker systems while working on a platform that will maximise their performance. With the optional incorporation of the new generation EtherSound 100 hardware, the NXAMPs will additionally provide an unprecedented capability of Digital Audio networking and Control.
The NXAMP 4X4 Powered TDcontroller is based on an innovative design that will provide the full integration of speaker and amplifier control with output capacities that will allow end users a cost effective solution.
The innovative control structure implemented into the NXAMP is via the latest generation of NEXO’s TDcontroller into the amplifier. This full integration of control will provide a safety base and real-time performance that is a first of kind by having all the parameters being controlled by the DSP.
This real-time control will offer the end users the ability to manage the voltage/current/temperature sense lines from the amplifiers output, protecting both the amplifier and its power supply in real time, while simultaneously offering all control parameters required for the speakers.
- NXAMP 4x4 is among the industry’s most powerful amplifiers
- Ultra flexible true four channels digital processing and amplification solution offering a perfect match to any NEXO speakers
- Cost effective integration of command, control, protection and amplification of all NEXO loudspeaker systems
- Lighter and requires less rack space than conventional amplifier processor systems
- Eliminates unnecessary A/D conversion
- Optional EtherSound Networking
- Analog audio inputs: 4x balanced analogue inputs on XLR3 with a second XLR3 for link
- Power outputs: 4x Neutrik Speakon NL-4 outputs
- RS232 port: 1x DB-9 connector for firmware upgrade and accessories connection
- GPIO port: 1x DB-25 connector with 5x Global Purpose Inputs and 8x Global Purpose Outputs
- Expansion slot: For networking audio cards, 4x digital audio inputs and remote control
- Mains sockets: 2x Neutrik Powercon NAC3 (2x 16 A) or NAC3-HC (2x 32 A) depending on model
- Front panel buttons and knobs: On/Off Mains switch, Select Wheel, 2x Menus buttons, 4x Select and 4x Mute buttons
- Display: 40 characters by 2 lines LCD display with LED backlight
- Global status display: Power, Standby and Amp Protect LEDs
- Speakers/Amp status display: Per channel, output current sensing, speaker protection and channel soft clip
- Electrical Safety Certification: cULus, CB (CE)
- EMC Certification: CE, FCC
- Green status: Compliant with ROHS directive
Physical & Dimensions
- Height: 4U
- Depth: 457mm
- Weight: 24.5kg
