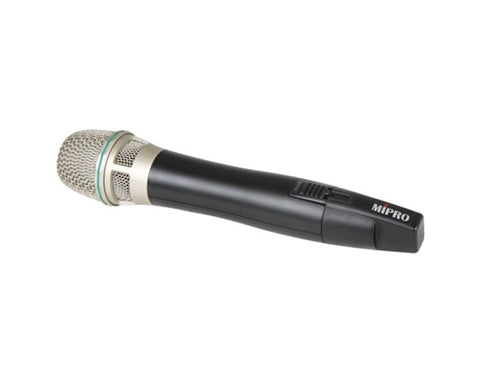

MIPRO ACT-32HC Handheld Transmitter CH70

The MIPRO ACT-32HC is a rechargeable handheld transmitter with backlit LCD display on channel 70.

FEATURES:

• Innovatively designed metal housing in MIPRO’s distinctive aesthetic and ergonomic style
• Interchangeable capsule module with premium condenser or dynamic options for easy and fast changeovers. The unique multi-layered metal grille protects the capsule against impact, rolling and pop noise, ensuring clarity of sound. The upper grille is easy to detach for cleaning and hygiene practice
• Patented capsule suspension design virtually eliminates vibration and handling noises
• Built-in high-efficiency antenna
• Backlit LCD displays all operational parameter information
• World’s first ACT™ function provides precise and rapid frequency sync to the receiver

SPECIFICATION:

General

• Housing: Black-colour rugged plastic housing
• Display: LED indicator for battery status.
• Frequency Range: UHF 480 ~ 934 MHz (country dependent)
• Bandwidth: 24 MHz
• RF Output Power: 10 ~ 30 mW (country dependent)
• Deviation: < ± 40 kHz
• Spurious Emissions: < -55 dBc
• Gain: 0 dB = input microphone sensitivity. High-fidelity modulation circuit sustains high SPL without distortion.
• Operating Time: Min. 13 hours
• Charger: MP-80 / MP-8

Physical & Dimensions

• Length: 250mm
• Diameter: 51mm
• Weight: 251g

Manufacturer: MiPRO
