Millennia Media NSEQ-4
MM-NSEQ4
Usually shipped within 2-3 working days

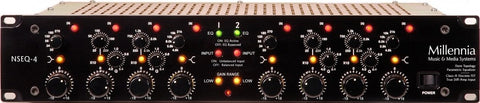

The NSEQ-4 Two channel Class A discrete solid state parametric equaliser.
World's first (and only) all-discrete, true differential Class-A input buffer/amplifier.
Four bands of EQ per channel.
Features:
- World's first (and only) all-discrete, true differential Class-A input buffer/amplifier.
- Selectable balanced or unbalanced input.
- Greatly improved 3rd generation FSA-03 all-discrete EQ amplifier
- Improved output stage, no muting required (as with Twin Topology)
- True hard-wire bypass when EQ not selected
- Upgraded power supply leading to improved sonic performance
- Fully parametric stereo EQ with unprecedented sonic purity and integrity
- All discrete J-FET solid state signal path
- Minimalist design: only one active stage in the audio path
- Four EQ bands: 20 Hz to 20 kHz center frequency, 0.4 to 4.0 Q
- Extremely low noise: -106 dBu
- Constructed for demanding professional applications
- Ultra-Premium components throughout
- Gold relays, connectors, switches,
- Silver Teflon power wiring
- Mogami Neglex OFC audio wiring
Options
- Detented, loggable controls
- NSEQ-2 can be converted to an NSEQ-4
Specifications:
- “Q” Range: Q = 0.4 to 4.0 Adjustable on middle ranges. Q = 1.0 Fixed on low & high ranges
- Maximum Output Level > + 28 dBu
- Maximum Input Level (EQ Flat) + 28 dBu
- Maximum Input Level (EQ Full Boost) + 17 dBu
Frequency Response:
- +0 / -3 dB sub 2 Hz to beyond 300 kHz
- Frequency Response, Stereo Deviation < .15 dB
- Noise (All EQ Stages In, Controls Flat) -106 dBu
- Maximum Boost (21 Step Detented) +20 dB (+10 dB with range switch in)
- Maximum Cut (21 Step Detented) -20 dB (-10 dB with range switch in)
EQ Frequencies:
- Low Range Switch (Centers - Peak/Shelf Selectable): 20, 34, 56, 100, 180, 270
- Low Mid Sweep: 20 Hz - 220 Hz or 200 Hz - 2.2 kHz.
- 10X Range switch selectable.
- Hi Mid Sweep: 250 Hz - 2.5 kHz or 2.5 kHz - 25 kHz.
- 10X Range switch selectable.
- High Range Switch (Centers - Peak/Shelf Selectable) 4.8 k, 5.8 k, 8.0 k, 10 k, 16 k, 21 k
THD + Noise:
- 20 Hz - 30 kHz, All EQ Bands Switched In < .009%, typ < .003 %
Common Mode Rejection Ratio:
- 10 Hz - 20 KHz, 100 mV C.M. > 60 dB, Typ > 80 dB
- Slew Rate, +27 dBu Out > 50 volts per microsecond
- Main Hard-wire Bypass Switch For Each Channel? Yes
- Peak/Shelf Selection On High & Low Range? Yes
- Hard-wire Bypass Switching On Individual EQ Bands? Yes
- Input Impedance 25 kilohms
- Minimum Output Load Impedance 50 ohms
- Recommended Load > 500 ohms
- Output Impedance 5 ohms
- EQ Amplifiers Pure Class-A Discrete J-FETs
Manufacturer: Millennia Media
