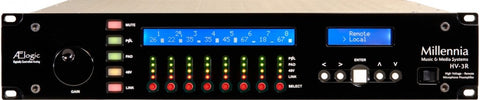

Millennia Media HV-3R
MM-HV3R
Usually shipped within 2-3 working days
The HV-3R has a plug 'n play Pro Tools interface via MIDI. Using Ethernet, and a Remote PC or Mac application, you can manage a complex system from anywhere: around the corner or around the world.
Developed to be accurate enough for the world's finest acoustic recordings. Textbook theory is an incomplete guide, and test instrument readings don't
reliably measure the quality of the listening experience.
Whatever the venue or musical style, the HV-3 Series delivers the authentic sound of vocalists, acoustic instruments, drums, triple guitar stacks... delighting artists, engineers, producers and listeners around the world.
Features:
- Control up to 792 channels (99 units) at once via Ethernet: TCP/IP addressing allows control via the Internet
- Plug ‘n play Pro Tools interface via MIDI
- Dante, AES and MADI output options
- AElogic Windows software offers total control
- Hi-definition meters, unlimited groups, scene management, voltage/temperature monitoring...
- Transformerless design with matched hi-speed discrete transistor octet has 23 dB input headroom: no “pads” needed
- Entirely balanced audio path with precision components maintains signal integrity: THD under 5 PPM (.0005%)
- Effortless, vividly realistic musical performance
- Laser-trimmed FET-based output stage has 32 dB headroom: drives 1000 foot (300m) cable runs with ease
- Gain controls (1 dB per step) on all channels are-matched to .08 dB
- Ultra-clean toroid power supply
- Mogami Neglex OFC audio wiring, silver Teflon power wiring
- Aluminium 16 gauge rack chassis
Specifications:
| Minimum Gain | 8.5 dB |
| Maximum Gain (1 dB per step) | 80 dB |
| Frequency Response (+0 / -3 dB) | sub 3 Hz to beyond 300 kHz |
| Noise (60 dB Gain, 10 Hz - 30 kHz, Inputs common) | -133 dB EIN |
| Total Harmonic Distortion + Noise ( 35 dB Gain, 10 Hz - 20 kHz bandwidth, +27 dBu Out) | < .001%, Typ. < .0005% (< 5 ppm) |
| Intermodulation Distortion (50 Hz & 7 kHz), 35 dB Gain, +27 dBu Out) | < .0009% |
| Phase Response (35 dB Gain, 50 Hz - 20 kHz bandwidth, +27 dBu Out) | < 2 degrees deviation |
| Common Mode Rejection Ratio (35 dB Gain, 10 Hz - 20 kHz bandwidth, 100 mV C.M.) | > 65 dB, Typ > 85 dB |
| Slew Rate (35 dB Gain, +27 dBu Out) | > 25 Volts per microsecond |
| Maximum Input Level (20 Hz - 40 kHz) | +23 dBu (no attenuator pads required) |
| Maximum Output Level (20 Hz - 40 kHz) | +32 dBu |
| Phantom Input Impedance (1 kHz) | 6,750 ohms |
| Output Impedance | 24.3 Ohms (x2) |
| DPA (B&K) Mic Powering | +130 V dc max, (non-phantom) |
| Phantom Powering | +48 V dc, +/- 2 V dc |
| Power Consumption | 45 watts maximum |
| Power Requirements | Selectable: 100-120, 200-240 V ac, 50/60 Hz |
| Dimensions/Shipping Weight | 19" W x 3.5" H x 16" D, 19 lbs. |
Manufacturer: Millennia Media
