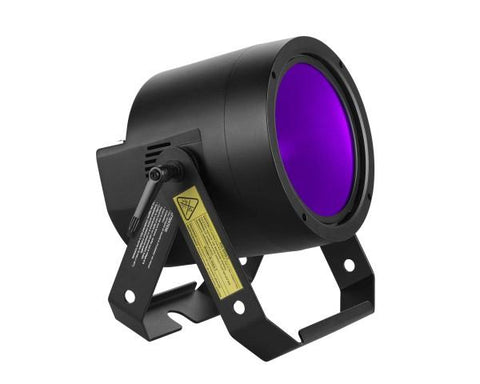

Martin RUSH PAR 4 UV

The Martin RUSH PAR 4 UV is a bright single-lens UV LED PAR can light fixture for use in blacklight applications.

This fixture includes a 100 watt COB 400nm UV LED mounted in a reflector for high-output ultraviolet light and has regulated air cooling for quiet operation.

With electronic dimming and strobe and a bracket suitable for floor or truss mounting, the RUSH PAR 4 UV is ideal for a variety of nightlife, stage, and concert applications.

FEATURES:

• RUSH Par 4 UV
• 100 watt COB 400nm LV LED
• Forced air cooling for quiet operation
• Electronic dimming and strobe
• Bracket suitable for floor or truss mounting
• Lightweight construction

SPECIFICATION:

General

• Dynamic Effects
  • Dimming: 0 – 100%, coarse & fine control
  • Shutter: Strobe & pulse effects, instant open and blackout
• Control and Programming
  • Control system: USITT DMX512/1990 with RDM
  • DMX channels: 3
  • RDM compliance: ANSI/ESTA E.120
  • Interface: Control panel with backlit LCD display
• Construction
  • Colour: Black
  • Housing: Cast aluminium
  • IP rating : IP 20
• Installation
  • Mounting points : Adjustable bracket, surface or truss mount
  • Location: Indoor location only
  • Orientation: Any
  • Minimum distance to illuminated surfaces: 0.5 m (20 in.)
  • Minimum distance to combustible materials: 0.1 m (4 in.)
• Connections
  • AC power input/output: Neutrik PowerCon
  • DMX & RDM data in/out : 5-pin locking XLR
  • RUSH PAR 4 UV User Manual 31
• Electrical
  • AC power: 100-240 V nominal, 50/60 Hz
  • Power supply unit: Auto-ranging electronic switch mode
  • Maximum total power consumption: 114 W
  • Typical half-cycle RMS inrush current: 11.2 A
• Typical Power and Current
  • 100 V, 60 Hz: 114 W, 1.2 A, PF 1.000
  • 120 V, 60 Hz: 114 W, 1.0 A, PF 0.996
  • 230 V, 50 Hz: 114 W, 0.5 A, PF 0.933
  • Measurements made at nominal voltage. Figures are typical, not maximum, allow for a deviation of +/- 10%.
• Thermal
  • Cooling: Forced air, temperature-regulated
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min): 0°C (32° F)
• Approvals
  • EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
  • EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN

Physical & Dimensions

• Height: 207mm
• Width: 312mm
• Depth: 327mm
• Weight: 4kg

Manufacturer: Martin
