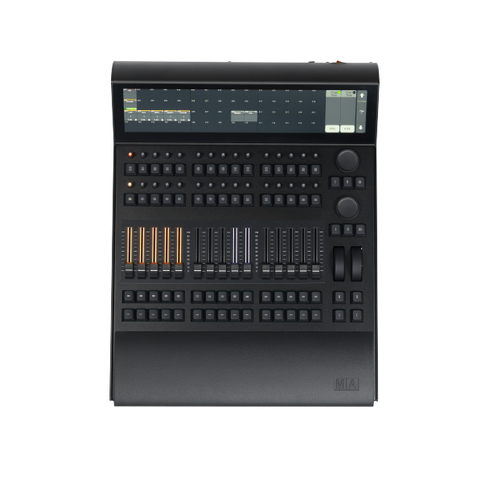

MA Lighting grandMA3 Extension

The grandMA3 extension is the perfect solution for remote playbacks on a small footprint and will be remote connected to the grandMA3 full-size, light or replay unit models.

This extension can be used for follow spot caller, keylighting board operator, remote media server live calls or just as extension for the grandMA3 full-size, light and replay unit.

It comes with the letterbox screen built-in and will be remote connected via Ethernet for a highly flexible solution. 60 freely configurable playbacks including 15 motorised and RGB backlit faders and 30 RGB backlit rotary encoder plus additional encoders and level wheels add to the flexibility of the grandMA3 system.

FEATURES:

• 1 internal letterbox multi-touch screen
• 2 multipurpose level wheels
• 2 multipurpose single encoder
• 30 rotary RGB backlit encoder
• 15 backlit motorised 60mm faders
• 60 separate playbacks
• 1 etherCON connector
• Individually backlit and dimmable silent (clickless) keys

SPECIFICATIONS:

• Parameters None
• Parameters Mode2 not applicable (no Mode2)
• Operating voltage/ Supply voltage 100-240V, 50/60Hz
• Power max. 75VA
• Operating Temperature 0 °C up to 40 °C / 32 °F up to 104 °F
• Dimensions 409 x 537 x 169 mm / 17 x 22 x 7 in (width x depth x height)
• Net weight 11 kg / 25 lbs
• 1 x powerCON TRUE1

• 1 x etherCON/RJ45
• 1 x LED desk light (4pin XLR female)

Manufacturer: MA Lighting
