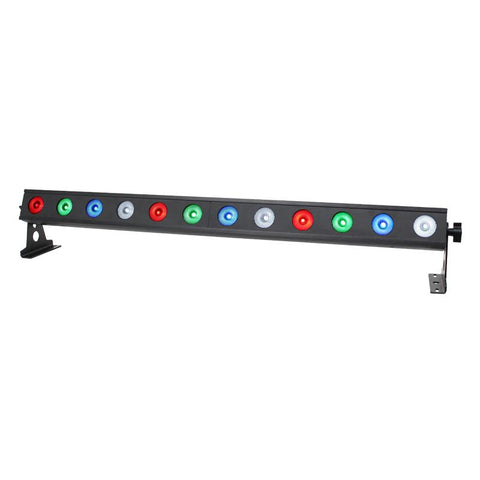

LEDJ Pixel Storm 12 Quad Batten

LEDJ Pixel Storm 12 Quad Batten



  • £350.00
Usually shipped within 2-3 working days

The LEDJ Pixel Storm 12 Quad Batten MKII is an individually pixel mappable batten featuring 12 x 15W quad-colour LEDs.

With a 10° x 45° beam angle and smooth colour mixing, along with built-in colour macros, it is superb for wall washing due to its ellipsoidal beam angle.

The 4 button LED menu allows selection of the built-in programs, RGBW colour mixing or multiple DMX channel modes to suit many applications.


  • 12 x 15W quad-colour LEDs (RGBW)
  • Beam angle: 10° x 45°
  • 3,851 Lux @ 2m (full on)
  • 3kHz refresh rate
  • Pixel mapping capabilities
  • DMX channels: 3/4/6/10/48/54
  • Static colour, colour mix, colour change, colour fade, sound active and master/slave modes plus built-in programs
  • 0 - 100% dimming and variable strobe
  • End brackets and central bracket allow for multiple rigging and floor standing applications
  • Eyebrow supplied to reduce glare and hide the LEDs when uplighting
  • 4 push button menu with LCD display
  • PowerCON input/output
  • 3-Pin XLR input/output
  • 5-Pin XLR input/output
  • Temperature controlled fan for whisper quiet operation


    • Power consumption: 150W
    • Power supply: 100~240V, 50/60Hz
    • Fuse: F3A 250V
    • Dimensions: 155 x 1035 x 145mm
    • Weight: 6.5kg

      Manufacturer: LEDJ
