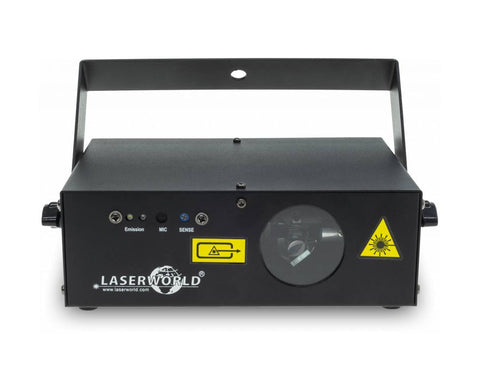

Laserworld EL-230RGB Laser

The Laserworld EL-230RGB is an RGB laser system with a total output power of up to 230mW.

The red diode laser module with a wavelength of 650nm, the green DPSS laser module with a wavelength of 532nm and the royal-blue laser module with a wavelength of 445nm ensure beautiful colours and brightness.

The beams have a diameter of about 4mm and a beam divergence of about 1mrad and the projector offers high-speed stepper motors with 2-5kpps as well as a scan angle of up to 30°. About 50 pre-set basic patterns, like layers, tunnels, fences, waves etc. can be controlled via DMX.

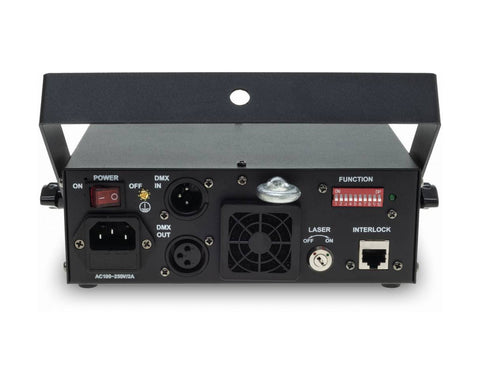

A sound-to-light mode, as well as a stand-alone mode, is available too. For the sound-to-light mode, the sensitivity of the integrated adjustable microphone can be adjusted. There is an on-off switch at the rear side of this device.

The Laserworld EL-230RGB is a good solution for first-time users and mobile use and it is often used in bars, small clubs, at private parties or for home use.

With ultra-bright 445nm royal blue!

FEATURES:

• An RGB colour laser system
• The laser modules ensure beautiful colours and brightness
• Approximately 50 preset basic patterns
• A good solution for first-time users
• Beam diameter of 4mm and a beam divergence of about 1mrad
• Used in bars, small clubs, at private parties or home use

SPECIFICATION:

General

• Total Power typical: 230 mW
• Guaranteed power: 170 mW
• Power Red: 100 mW / 650 nm
• Power Green: 20 mW / 532 nm
• Power Blue: 50 mW / 445 nm
• Beam Specifications: ca. 4 mm / 1 mrad
• Laser Sources: Diode, DPSS Laser
• Laser Class: 3b
• Operation Modes: Stand-Alone, Sound-to-Light, DMX
• Scanner: high-speed stepper motors, up to 2-5 kpps
• Scan Angle max.: 30°
• Basic Patterns: ca. 50 (layers, tunnels, fences, waves, etc.)
• Accessories: power cable, manual, interlock, key
• Power Supply: 85V - 250 V AC
• Power Consumption: 15 W

Physical & Dimensions

• Width: 188mm
• Height: 165mm
• Depth: 106mm
• Weight: 2.6kg
