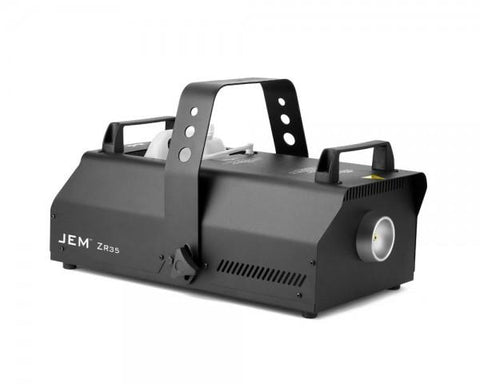

JEM ZR35
92215340/ MAR1164
Usually shipped within 2-3 working days
The JEM™ ZR35 is a mid-sized fog machine designed to deliver superior and uninterrupted performance in demanding professional applications.
Via its powerful 1,500 W heat exchanger, the JEM ZR35 produces a fantastic peak output ideal for mid to large-sized venues and stages in both install and rental markets.
The rugged yet weight optimised JEM ZR35 also features variable output control for more subtle effects and is fully up-to-date with digital remote, DMX and RDM.
The entire JEM ZR range is compatible with a wide range of JEM Pro fog fluids. As machines designed and built to last, the JEM ZRs will continue to perform with great output and low consumption.
FEATURES:
- High endurance mid-sized fog machine
- Exceptional performance and output
- Various control options via digital remote, DMX and RDM
- 1,500 W heat exchanger
- 50 ml in 30 seconds peak performance
- 800 m³/min fog output
- Variable output control for subtle effects
- 8-9 minute warm-up time
- Digital remote, DMX and RDM
- Compatible with a wide range of JEM Pro fog fluids
- Floor standing or truss mounting (bracket included)
- PowerCON TRUE1
- 4-litre bottle (Also compatible with a 5-litre bottle)
SPECIFICATION:
Physical
- Length: 590 mm (23.3 in.)
- Width: 395 mm (15.6 in.)
- Height: 264 mm (10.4 in.)
- Height including hanging bracket: 333 mm (13.9 in.)
- Dry weight: 15.1 kg (33.3 lbs.)
- Filled weight: 19.1 kg (42.1 lbs.)
Control and Programming
- Control options: Integrated digital remote control, DMX, optional analogue remote control, master/slave link mode
- Control parameters: Continuous or timer-controlled output
- Fog: Variable output control, 0-100%
- DMX channels: 1
- DMX compliance: ANSI E1.11 - USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20 RDM
Construction
- Housing: Steel and aluminium
- Hanging bracket: Integrated yoke with safety attachment point
- Color: Black
- Heat exchanger: 1500 W, thermally protected
- Fluid pump: Oscillating piston, high pressure
- Fluid management: Fluid out sensing, sealed for transportation
- Fluid reservoir: 4 or 5 l drop-in reservoir with quick-connect fitting
- External fluid control: Fluid sensing
- Remote control: Integrated Digital Remote with 3 m cable, 3-pin XLR
Installation
- Mounting: Standing or hanging
- Orientation: Up to +/- 40° from horizontal
- Clearance around machine: 100 mm (4 in.)
Connections
- AC Power: Neutrik powerCON TRUE1
- DMX and link mode in/out: 5-pin locking XLR
- Remote control: 3-pin locking XLR
- Firmware: AVR socket
Manufacturer: JEM
