JBL Control 322C 12" Speaker

JBL Control 322C 12" Speaker

JBL0641

JBL

  • £840.00
Usually shipped within 2-3 working days

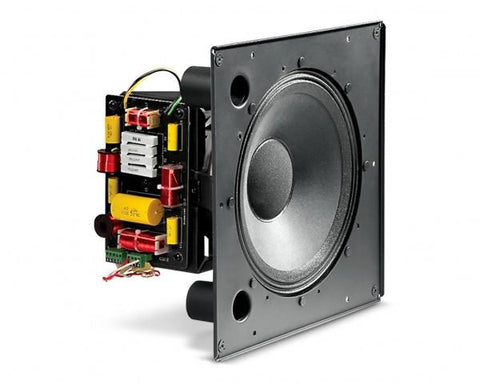

The Control 322C delivers exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.

Main Features

  • JBl Control 322C Ceiling Speaker
  • Consistent 90deg broadband pattern control
  • 12" woofer with 3" voice-coil cone
  • Extraordinary clarity for speech and vocals
  • Extended frequency response for music
  • Advanced high-slope crossover network
  • Priced and Sold Individually

Product Specifications

General

  • Frequency Range (-10 dB): 32 Hz – 20 kHz
  • Long-Term System Power Rating:
    • 400 W (1600 W peak), 2 hrs
    • 250 W (1000 W peak), 100 hrs
  • Sensitivity (2.83V@ 1m):
    • 95 dB measured half-space
    • 100 dB computed for competitive comparison
  • Frequency Response (±3 dB): 48 Hz – 19 kHz
  • Coverage Pattern: 90° conical, broadband (Avg. 1k - 16kHz)
  • Directivity Factor (Q): 9 (1k - 16kHz)
  • Directivity Index (DI): 9.5dB (1k - 16kHz)
  • Crossover Network: 1.4 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
  • Nominal Impedance: 8 ohms

Physical & Dimensions

  • Height: 366mm
  • Width: 366mm
  • Depth from back of Baffle: 223mm

Manufacturer: JBL
