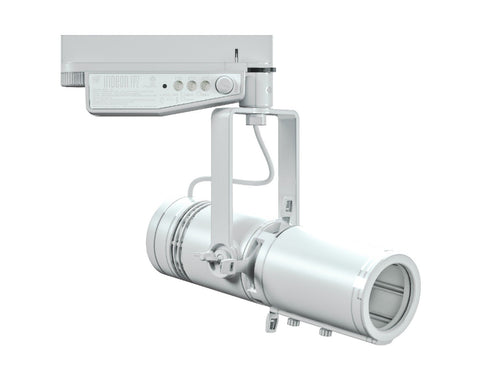

ETC Irideon FPZ Zoom Gallery 3000K - White

ETC Irideon FPZ Zoom Gallery track mount in white pairs the best of the Source Four® Mini LED platform with exceptional output and a sleek industrial design to light your space with elegance and subtlety.

Available for use with Eutrac® three-circuit track with data, the feature-rich design is perfect for museums, lobbies, and retail environments.

Truly a Source Four fixture at heart, Irideon FPZ boasts its own set of enhancements such as lockable 3-plane shutters, zoom optics, and the ability to dim using either DMX or a local dimming knob located on the track adapter. But the beam is still everything you expect and more; Irideon FPZ puts out over 800 field lumens, 33% brighter than Source Four Mini LED and every bit as pleasing to the eye with a wide selection of color temperatures.

FPZ gives you the versatility you need to create the beautiful light you want from an integrated, unassuming design that won’t dominate your space.

FEATURES:

• Sleek industrial design to light your space with elegance and subtlety
• Boasts its own set of enhancements such as lockable 3-plane shutters & zoom optics
• Puts out over 800 field lumens, 33% brighter than Source Four Mini LED
• Designed to operate with ETC’s DataTrack distribution system
• Color-matched adapter with fully integrated driver
• DMX or locally dimmed

SPECIFICATION:

General

• A380 grade, die-cast aluminum construction
• Fine-texture, high-temperature powder-coated paint
• Steel yoke
• Rotating shutter assembly ±175°
• E-size gobo pattern holder (included)
  • 37.5mm with a 25.4mm image area
• Locking, A301 grade stainless steel, full hard shutters in a tri-plane assembly, 0.40mm
• Tool-free tilt and beam adjustment
• High-impact resistant, thermally insulated knobs and shutter handles
• Captive accessory slot for pattern holder (included)
• Magnetically held media holder accepts gel and dichroics up to 1.75mm thick
• IP20 rated
• Compatible and ETL-listed for ETC DataTrack (EUTRAC) brand track
• DataTrack two-circuit with (120V) with data and Eutrac three-circuit (230V) with data
• Color matched track adapter with fully integrated driver included

Electrical

• Power at full intensity: 20W typical, 24W Max
• DMX/RDM built in
  • Up to 32 DMX devices per data run
  • Up to 32 RDM devices per data run
  • DataTrack only supports 20 RDM devices per data run
• Input voltage options:
  • 100-120VAC 50/60 hz
  • 230-240VAC 50/60 Hz
• Inrush (first half-cycle)
  • 120V: 11A
  • 240V: 24A

Source

• Cree LED: 90+ CRI
• 35,000 hours L70 lumen maintenance

Optical

• Built-in zoom optics (25-50 degree beam-angle)
• Projector-quality, high-contrast lenses
• Beam edge continually adjustable hard to soft

Thermal

• Ambient Operating Temperature Range:
• 0°C to 40°C (32°F to 104°F)

Manufacturer: ETC
