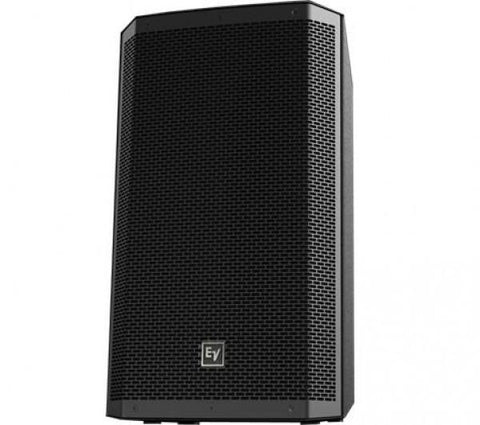

Electro-Voice ZLX-12 12" Passive Speaker

Electro-Voice ZLX-12 12" Passive Speaker

F.01U.272.255

Electro-Voice

  • £239.00
Usually shipped within 2-3 working days

The Electro-Voice ZLX-12 is a 12" passive PA speaker which has a 250W continuous (1000W peak) power handling capability to provide a strong, distortion-free performance.

Main Features

  • 12” woofer for low-end punch in a compact enclosure and 1.5” high-frequency
  • titanium compression driver
  • 55 Hz – 20 kHz frequency range
  • 250 W continuous and 1000 W peak power handling
  • 95 dB SPL sensitivity; 125 dB max SPL.8 lbs (14.9 kg)

Specifications

General

  • Axial Sensitivity (SPL, 1 W @ 1 m): 95dB
  • Connector Type: Dual NL4
  • Coverage (Nominal -6 dB) H: 90 °
  • Coverage (Nominal -6 dB) V: 60 °
  • Crossover Frequency: 2100Hz
  • Enclosure Material: Polypropylene Composite
  • Family: ZLX
  • Frequency Range: 55 Hz - 20 kHz
  • Frequency Response: 82 Hz - 18 kHz
  • Grill: 18 Gauge Steel with Black Powder Coat
  • HF Transducer: DH-1K
  • LF Transducer: EVS-12K, 300 mm (12 in) Woofer
  • Max. SPL/1m (calc): 125dB
  • Maximum SPL: 125dB
  • Minimum Impedance: 7Ω
  • Nominal Impedance: 8Ω
  • Passive Power Handling: 1000W peak
  • Power Handling (Continuous / Peak): 250/1000W
  • Power Rating: 1000W
  • Powered or Passive: Passive
  • Recommended High-Pass Frequency: 40Hz
  • Speaker Type: Full-Range
  • Woofer Size: 12inch

Physical & Dimensions

  • Height: 610mm
  • Width: 356mm
  • Depth: 356mm
  • Weight Net: 14.9kg


Manufacturer: Electro-Voice
