Electro-Voice TX1122FM Passive Speaker
F.01U.135.408
Usually shipped within 2-3 working days

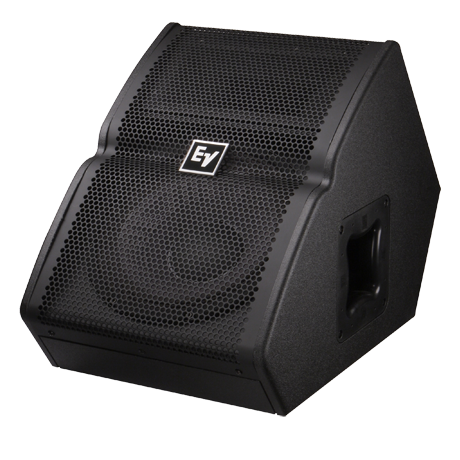

The Electro-Voice TX1122FM Tour-X passive monitor is compact two way vertical floor monitor which delivers a high output and is great for small to medium-sized stages.
Main Features
- Compact with high output
- Ideal for small-to-medium stages
- Signal Synchronised Transducers for woofer/tweeter alignment
- Low-distortion SMX2120 woofer with fully symmetric drive
- 1.25-inch DH3/2010A titanium HF compression driver
- Braced plywood/MDF enclosure
Specifications
General
- Coverage (Nominal -6 dB) H: 90°
- Coverage (Nominal -6 dB) V: 50°
- Crossover Frequency: 1600Hz
- Enclosure Material: Ply Wood and MDF with EVCOAT
- Family: Tour X
- Flying: No
- Frequency Response (-10 dB): 55 - 20000Hz
- Frequency Response (-3 dB): 70 - 20000Hz
- HF Transducer: DH3
- Input Connections: Parallel Neutrik® NL4
- Internal Crossover: Yes
- LF Transducer: SMX2121
- Max. SPL/1m (calc): 132dB
- Minimum Impedance: 6.4Ω
- Nominal Impedance (Passive): 8Ω
- Power Rating: 2000W
- Powered or Passive: Passive
- Recommended High-Pass Frequency: 60Hz
- Rotatable Horn: No
- Sensitivity 1 W/1 m: 99dB
- Speaker Type: Monitor
- System Power Handling (Continuous/Program/Peak): 500 Watts
- Woofer Size: 12inch
Physical & Dimensions
- Height: 440mm
- Width: 364mm
- Depth: 573mm
- Weight: 19.8kg
Manufacturer: Electro-Voice
