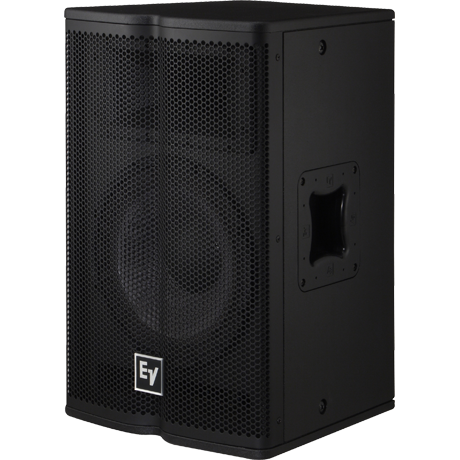

Electro-Voice TX1122 12" Passive Speaker
F.01U.135.403
Usually shipped within 2-3 working days
The Electro-Voice TX1122 Tour X is a 12" passive PA speaker which has a 500W continuous (2000W peak) power handling capability to provide a strong, distortion-free performance.
Main Features
- High-quality sound at high levels
- Excellent pattern control for short-to-medium throw
- Low-distortion SMX2120 woofer with fully symmetric drive
- 1.25-inch DH3/2010A titanium HF compression driver
- Constant-directivity 90º H x 50º V horn
- Advanced 4th-order crossover with HF protection
- 97 dB sensitivity, 130 dB maximum SPL
- Power handling: 500 W continuous, 2000 W peak
- Lightweight trapezoidal plywood/MDF enclosure
- Pole mount for use with subwoofer or stand
- Six 3/8-inch threaded suspension points
- Black EVCoat™ finish
Specifications
| Colour | Black |
| Input Connections | Parallel Neutrik® NL4 |
| Speaker Type | Full-range |
| Frequency Response (-3 dB) | 70 - 20000 Hz |
| Frequency Response (-10 dB) | 45 - 20000 Hz |
| Internal Crossover | Yes |
| Recommended High-Pass Frequency | 45 Hz |
| Sensitivity 1 W/1 m | 97 dB 1w/1m |
| Max. SPL/1m (calc) | 132 dB |
| Coverage (Nominal -6 dB) H | 90 ° |
| Coverage (Nominal -6 dB) V | 50 ° |
| Rotatable Horn | No |
| System Power Handling (Continuous/Program/Peak) | 500//2000 Watts |
| LF Transducer | 12-inch SMX2121 |
| HF Transducer | 1.25-inch DH3/2010A |
| Crossover Frequency | 1600 Hz |
| Nominal Impedance (Passive) | 8 Ω |
| Minimum Impedance | 6.4 Ω |
| Enclosure Material | Plywood and MDF with EVCOAT |
| Flying | Yes |
| Suspension | (6) 3/8-inch threaded inserts |
| Height | 440 mm (17.32") |
| Width | 364 mm (14.33") |
| Depth | 573 mm (22.56") |
| Weight Net | 19.8 kg (43.65 lbs) |
