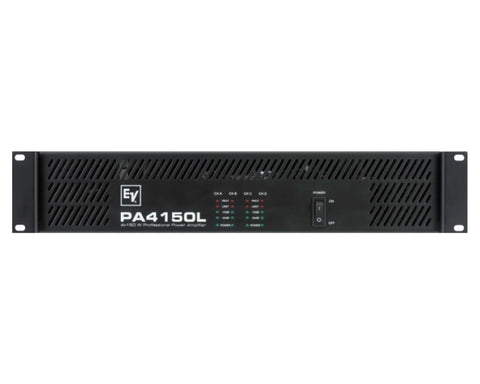

Electro-Voice PA4150L Power Amplifier

The Electro-Voice PA4150L power amp combines outstanding audio performance, exceptional reliability and secure operational safety in a compact 2RU chassis design.

All models in the PA Series provide several protection circuits which not only prevent the power amplifier itself but also the connected loudspeaker systems from being damaged. These protections include Dynamic Audio Limiters, Inrush Current Limiter, Short Circuit Protection and Thermal Overload Protection. All PA-Series power amps feature different hi-pass filters with switch selectable cut-off frequency to attenuate unwanted low-frequency signals. Infinitely variable low-noise high performance fans guarantee absolute thermal stability while keeping fan noise to a minimum.

Direct “flow-thru” chassis design allows for a smooth flow of air from front-to-rear, which allows trouble-free operation even in smaller amp-racks. Compact high density power supply units with low-leakage toroidal transformers provide extensive headroom far above the listed power rating. Premium phoenix style screw-lock connectors prevent accidental disconnection resulting in a more secure connection of audio signal and speaker cables.

FEATURES:

• Flexible multi-channel power for installation
• Ideal for sound reinforcement, paging, and life safety
• 150 W per channel into 4 Ω
• Bridged mode for dual 315 W outputs into 8 Ω
• Compact 2 RU design

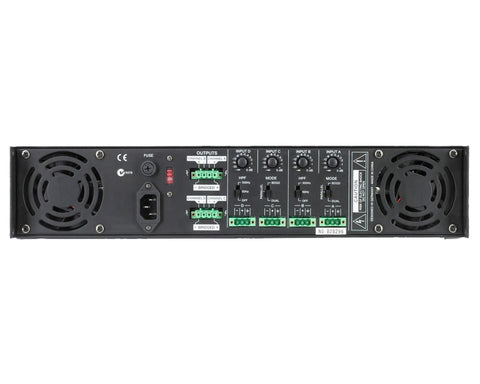

• Stepped rear-panel level attenuation
• Selectable 50 Hz or 300 Hz high-pass filter
• Thermal protection, peak limiting, turn-on delay
• Phoenix-type inputs and outputs
• Three-stage front-to-rear fans
• Integrated rack ears for direct mounting

SPECIFICATION:

General

• Amplifier Gain: 30 dB
• Continuous Rated Power (1 kHz, THD 1%) 4Ω: 160 Watts
• Continuous Rated Power (1 kHz, THD 1%) 8Ω: 100 Watts
• Continuous Rated Power (20-20 kHz, THD<0,2%) 4Ω: 150 Watts
• Continuous Rated Power (20-20 kHz, THD<0,2%) 8Ω: 75 Watts
• Crosstalk: < < -75 dB ref. 1kHz, @ 10% rated output power
• DIM 30: < 0.1 %
• Frequency Response: < 10Hz - 40kHz -1dB, ref. 1kHz
• Impedance: 4/8 Ω
• Input Impedance (Balanced): > 20 kΩ
• Input Sensitivity: 0 dBu (775mV) @ rated output power or voltage, 1kHz
• Intermodulation Distortion (SMPTE): < 0.1 %
• Network Control (IRIS-Net): No
• Number of Channels: 4
• Rated output power (*rated load) THD < 0.2%, 20Hz – 20kHz: 150/75 W 4Ω/8Ω
• Rated output power (*rated load) THD < 1%, 1kHz: 160/100 W 4Ω/8Ω
• Signal-to-Noise Ratio (A-weighted): 101 dB
• Slew Rate: 16 V/µs
• Total Harmonic Distortion: < 0.1 %

Physical & Dimensions

• Height: 2RU 88mm
• Width: 483mm
• Depth: 406mm
• Weight: 18kg

Manufacturer: Electro Voice
