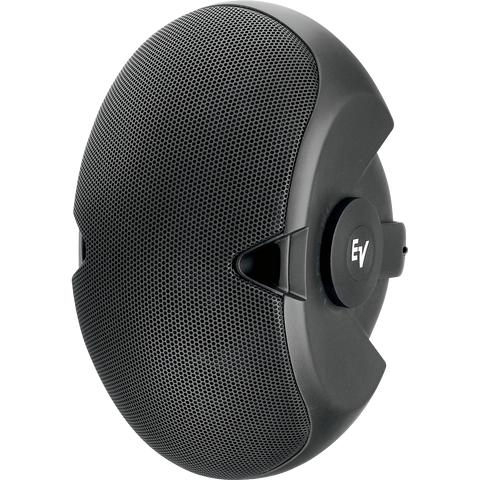

Electro-Voice EVID 6.2T Dual 6" Speaker

Electro-Voice EVID 6.2T Dual 6" Speaker

F.01U.117.534

Electro-Voice

  • £224.00
Usually shipped within 2-3 working days

The EVID™ 6.2T is an extended-range high-output speaker with dual 6-inch woofers and a 1-inch titanium tweeter with waveguide, designed for high SPL over a wide coverage area. The EVID™ 6.2T includes a multi-tap transformer for a 70V or 100V line distribution system.

Main Features

  • T version for 70 or 100 V distributed systems
  • Vented LF enclosure
  • 1-inch titanium diaphragm HF driver
  • Elliptical weather-resistant ABS enclosure
  • Strong-Arm Mount for easy, flexible aiming
  • In Black
  • Priced and Sold Individually

      Specifcations

      General

      • Chassis Size: 152.4mm
      • Colour: Black
      • Input Connections: Spring Terminal
      • Speaker Type: Full-range, Mid-High, Two-Way
      • Transformer Taps: 70 V/100 V: 15 W, 30 W, 60 W, 8 Ω Bypass
      • Frequency Response (-10 dB): 62 - 20000 Hz
      • Internal Crossover: Yes
      • Sensitivity 1 W/1 m: 94 dB
      • Max. SPL/1m (calc): 122 dB
      • Coverage (Nominal -6 dB) H: 100°
      • Coverage (Nominal -6 dB) V: 80°
      • System Power Handling (Continuous/Program/Peak): 150//600 Watts
      • LF Transducer: Two 6-inch
      • HF Transducer: 1-inch
      • Nominal Impedance (Passive): 8Ω
      • Minimum Impedance: 6Ω
      • Outdoor: Yes

      Physical & Dimensions

      • Height: 419mm
      • Width: 228mm
      • Depth: 298mm
      • Weight: 5.3kg

              Manufacturer: Electro-Voice
