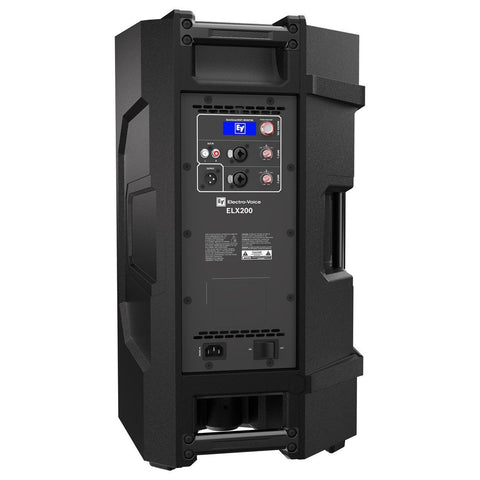

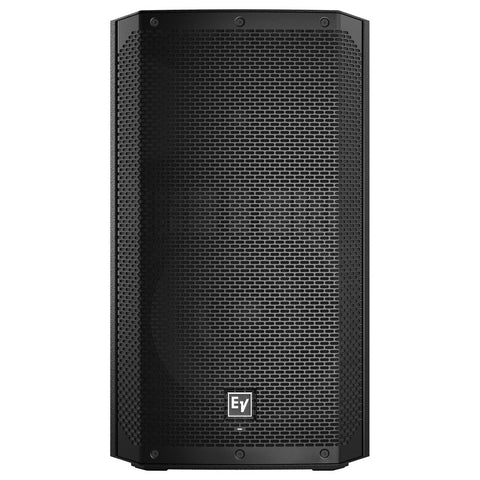

Electro-Voice ELX200-12P Active Speaker

F.01U.326.044

Electro-Voice

  • £595.00
Usually shipped within 2-3 working days

The Electro-Voice ELX200-12P 12" Active Speaker features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP.

Delivers up to 130 dB SPL utilising transducers designed and engineered by EV (12-inch EVS-12M woofer coupled with a DH-1C 1-inch titanium compression driver)

The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth® Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously.

Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth® is available in select countries.

FEATURES:

  • Wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously
  • QuickSmartDSP
  • 1 x Stereo RCA Input, 2 x XLR/TRS combo jack and 1 x XLR
  • 1200 W Class-D power amplifier
  • Delivers up to 130 dB peak SPL
  • Ideal for portable and installed applications

SPECIFICATION:

General

  • Colour: Black
  • Connector Type: (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR
  • Coverage (Nominal -6 dB) H:90°
  • Coverage (Nominal -6 dB): V:60°
  • Crossover Frequency: 1700Hz
  • Enclosure Material: Polypropylene Composite
  • Family: ELX200
  • Frequency Range (-10 dB): 51 Hz – 20 kHz
  • Frequency Response (-3 dB): 57 Hz – 16 kHz
  • Grille: 18 AWG steel with powdercoat
  • HF Transducer: DH-1C 1-inch titanium compression driver
  • LF Transducer: EVS-12M 300 mm (12 in)
  • Max. SPL/1m (calc): 130dB
  • Power Consumption: 100 - 240 V~, 50 - 60 Hz, 1.8A
  • Power Rating: 1200W
  • Powered or Passive: Powered
  • Speaker Type: Full-Range
  • Suspension: (3) M10 suspension points

Physical & Dimensions

  • Height: 629mm
  • Width: 363mm
  • Woofer Size: 12inch
  • Weight Net: 15.6kg
  • Shipping Weight: 17.7kg

Manufacturer: Electro-Voice
