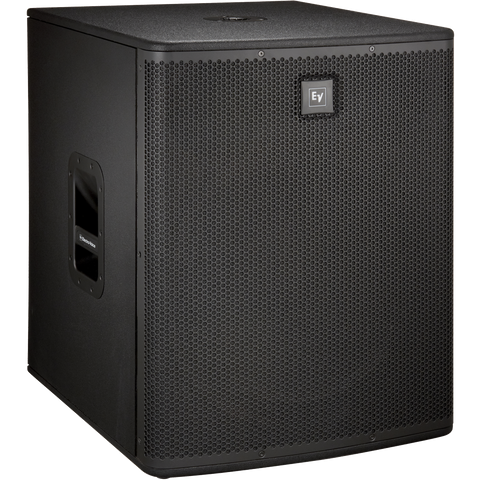

Electro-Voice ELX118 18" Passive Subwoofer
F.01U.170.825
Usually shipped within 2-3 working days
The Electro-Voice ELX118 Live X is a 18" passive PA subwoofer which has a 400W continuous (1600W peak) power handling capability to provide a strong, distortion-free performance.
Main Features
- Supplemental bass for ELX112 or ELX115
- EVS-18K woofer for extended LF
- 35 Hz – 200 Hz frequency range
- 134 dB max SPL
- Power handling: 400 W continuous, 1600 W peak
- Braced 15mm plywood enclosure
- Stack or pole-mount full-range boxes
- Black textured finish
- Free cover while stocks last
Specifications
General
- Axial Sensitivity (SPL, 1 W @ 1 m): 96 dB
- Case Material: 9-ply, 15mm Plywood, Internally Braced, with Textured Paint
- Connector Type: Parallel Neutrik® NL4
- Coverage (Nominal -6 dB): Omnidirectional
- Crossover Frequency: N/A
- Enclosure Material: 9-ply, 15 mm, plywood
- Family: ELX
- Frequency Response (-10 dB): 35 - 200 Hz
- Frequency Response (-3 dB): 50 - 100 Hz
- Grill: 18GA Steel with Black Powdercoat
- HF Transducer: N/A
- Internal Crossover: Yes
- LF Transducer: (1) EVS-18K, 457mm (18") Woofer
- Max. SPL/1m (calc): 134dB
- Minimum Impedance: 6.7Ω
- Nominal Impedance (Passive): 8Ω
- Power Rating: 1600W
- Powered or Passive: Passive
- Recommended High-Pass Frequency: 30Hz
- Speaker Type: Subwoofer
- System Power Handling (Continuous/Program/Peak): 400//1600 Watts
- Woofer Size: 18inch
Physical & Dimensions
- Height: 661mm
- Depth: 574mm
- Width: 507mm
- Weight: 0.6kg
