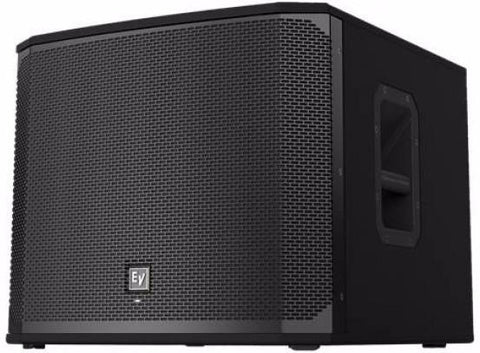

Electro-Voice EKX-15S 15" Passive Sub
F.01U.303.366
Usually shipped within 2-3 working days
The EKX-15S delivers up to 133 dB SPL utilising high-sensitivity transducers designed and engineered by EV.
Main Features
- Combines legendary EV sound quality and reliability with the latest technology
- Suitable for a wide range of sound reinforcement scenarios
- Including musicians/DJs and live/club/installed sound applications
- This is the 15" passive sub
- EKX is positioned above the ZLX and ELX series
- EKX is positioned below the ETX series
Specifications
General
- Axial Sensitivity (SPL, 1 W @ 1 m): 95 dB
- Maximum SPL: 133 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
- Nominal Impedance: 8 Ω
- Power Handling (Continuous / Peak): 400 W/1600 W
- Frequency Response (-3 dB): 60 Hz - 100 Hz Half Space Measurement
- Frequency Response (-10 dB): 40 Hz - 300 Hz Half Space Measurement
- Recommended High-Pass Frequency: 35 Hz
- LF Transducer: EVS-15C 381 mm (15 in)
- Minimum Impedance: 7.5 Ω
- Connector Type: Dual NL4
- Enclosure Material: 15 mm, plywood with EVCoat
- Grill: 18 AWG steel with powdercoat
Physical & Dimensions
- Height: 455mm
- Width: 530mm
- Depth: 551mm
- Weight: 24.9kg
Manufacturer: Electro-Voice
