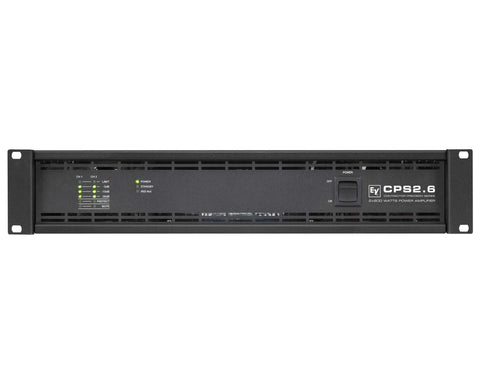

Electro-Voice CPS 2.6 MK II Power Amplifier
F.01U.076.846
Usually shipped within 2-3 working days
Designed for the contractor, the CPS 2.6 MK II feature 2-RU chassis, Phoenix-type connectors for inputs and outputs, pre-programmable power-on delay, easy power-on via remote contact closures, rear panel attenuators, and a switchable 50 Hz high-pass filter.
Like the CPS multi-channel amplifiers, the CPS 2.6 MK II also includes a module slot for the RCM-810 remote-control module, enabling networking features for system diagnostics and control via IRIS-Net software.
FEATURES:
- Up to 2 x 900 W into 2 ohms
- Phoenix-type input and output connections
- Remote power-on/off contact
- Rear-mounted attenuators
- Programmable time for custom power-on delay settings
- Module slot for optional RCM-810 card, allowing IRIS-Net control and monitoring
- Switchable 50 Hz high-pass filter
- Three-stage front-to-rear fans
- Class-AB design
- Complete protection package
SPECIFICATION:
General
- Amplifier Gain: 32 dB
- Analog Inputs: 2, electronically balanced, Phoenix-type
- Audio Network: No
- CAN Bus Interface: Optional (RCM-810 card)
- Continuous Rated Power (1 kHz, THD 1%) 2Ω: 900 Watts
- Continuous Rated Power (1 kHz, THD 1%) 4Ω: 600 Watts
- Continuous Rated Power (1 kHz, THD 1%) 8Ω: 380 Watts
- Continuous Rated Power (20-20 kHz, THD<0,2%) 4Ω: 500 Watts
- Continuous Rated Power (20-20 kHz, THD<0,2%) 8Ω: 250 Watts
- Cooling: Front-to-Rear, 3-stage fans
- Crossover Type: Optional Modules
- DIM 30: 0.02 %
- Electronics Type: Amplifier
- Frequency Response: 10 Hz - 40 kHz ±1 dB
- Impedance: 2/4/8 Ω
- Input Impedance (Balanced): 20 kΩ
- Input Sensitivity: +3.1 dBu (1.11Vrms)
- Intermodulation Distortion (SMPTE): 0.05 %
- Mains Voltage: 240 V, 230 V, 120 V or 100 V; 50 Hz - 60 Hz (factory configured)
- Maximum Bridged Output 4Ω: 1800 Watts
- Maximum Bridged Output 8Ω: 1200 Watts
- Maximum Input Voltage: +21 dBu 8.69 Vrms
- Network Control (IRIS-Net): Optional
- Slew Rate: 26 V/µs
- Topology: Class-AB
- Total Harmonic Distortion: 0.03 %
- Variable Load Drive (VLD): No
Physical & Dimensions
- Height: 2RU 88.1mm
- Width: 482.6mm
- Depth: 421.5mm
- Weight: 14.8kg
Manufacturer: Electro Voice
