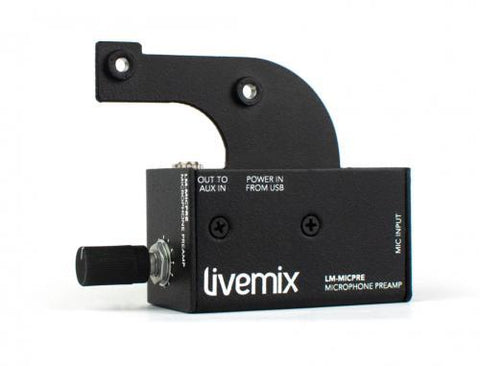

Digital Audio Labs LM-MICPRE
DI-LMMICPRE
Usually shipped within 2-3 working days
The Digital Audio Labs LM-MICPRE is an external preamp accessory designed for use with Livemix CS-DUO and CS-SOLO personal mixers.
By allowing Livemix users to bypass the built-in intercom microphone, the LM-MICPRE provides a direct input for any dynamic microphone to serve intercom purposes.
Three selectable modes are available for external intercom operation: "always on," which enables live input from the microphone at all times, “latching” for two-touch on/off switching, and "momentary” which enables input only when the button is held.
The LM-MICPRE can also be controlled remotely using the optional Livemix FP-2 foot pedal for hands free intercom operation.
Performance
- Gain: 47dB
- THD+N: 95dB
- Frequency Response: 20 Hz - 20kHz
- EIN: -127 dB
- Max Input: -5dBu
- Max Output: 0 dBu
- Input Impedance: 1.8 KΩ
Physical Properties
- Dimensions:92 x 70 x 32mm
- Weight: 0.17kg
Manufacturer: Digital Audio Labs
