Digital Audio Labs AD24DI-LMAD24

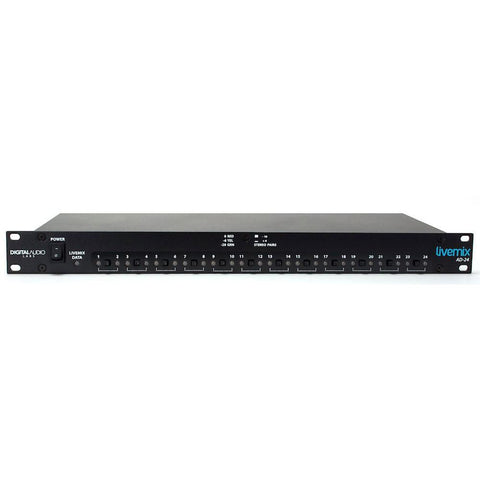

The AD-24 Analogue Input Rack Box is the unit that will take your analogue signals and convert them to digital for use in the Livemix system.
It is a single rack space box that will most likely live somewhere near the analogue source. If this is your mixer’s Direct Outs or Inserts, then the AD-24 will be near the mixer. If you use a snake with mic preamps, it might be near the snake. The AD-24 can take your input signal via TRS or DB-25.
The inputs are pass through so you can patch your analogue signal out of the AD-24 if required. The simple front panel interface allows selection of -10 dBV or +4 dBu line level in stereo pairs and indicates input signal levels by LED.
- 24 balanced/unbalanced inputs
- ¼” TRS & DB25 audio connections
- Front panel +4dBu/-10dBV switches
- Front panel VU metering
- High quality conversion
- External power supply
Manufacturer: Digital Audio Labs
