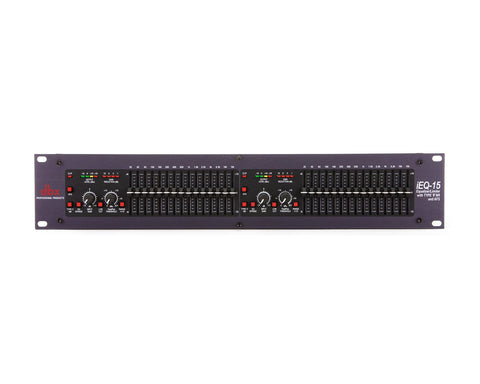

DBX iEQ15 Dual 15-Band Graphic EQ

The DBX iEQ-15 Dual 15-Band Graphic EQ with Type V™ NR and AFS® offers the built-in necessities which include AFS™ feedback Suppression, Type V™ noise reduction and PeakStopPlus® limiting.

Besides including two 15-band channels of 2/3-octave equalisation, the iEQ-15 also offers +12 dB input gain range; switchable +6 or +15 dB boost/cut range, 40mm faders, XLR, 1/4'' and Euroblock inputs and outputs, nonconductive nylon sliders; and an intuitive user interface with comprehensive output and gain reduction metering. As always, the inevitable result of our meticulous attention to detail and top-quality componentry is exceptional sound, performance, and reliability.

The iEQ series represents a major step forward in the performance of EQs. The iEQ series is now able to offer state-of-the-art digital EQ performance and specs with an analog look and feel. From its amazing 10Hz to 22kHz frequency response, to its 113dB dynamic range and Advanced Feedback Suppression (AFS™), dbx proprietary Type V™ noise reduction and PeakStopPlus® limiting, the iEQ-15 offers out of this world specifications with a downto- earth price point.

Sure to find a home in the studio, on tour and with installed sound venues, the iEQ-15 is destined to take its rightful place in the lineage of great dbx® signal processors that are the professional’s choice in signal processing. With such pristine design and quality, the iEQ-15 offers the maximum sonic flexibility in a straight forward interface and rock-solid construction.

Product Features

• Advanced Feedback Suppression (AFS™)
• Type V™ Noise Reduction
• PeakStopPlus® Limiting
• 2/3-octave Constant Q frequency bands
• Switchable boost/cut ranges of +6 or +15dB
• 18 dB per octave 40Hz low-cut filter
• +12dB input gain range
• XLR, TRS and Euroblock Inputs and Outputs
• Internal Toroidal Transformer
• Frequency Response of 10Hz to 22kHz
• Dynamic range of greater than 113dB
• User Power Up Features
• Relay Bypass for Power Failure System Protection

Inputs

• Connectors: 1/4" TRS, female XLR (pin 2 hot), and Euroblock
• Type: Electronically balanced/unbalanced, RF filtered
• Impedance: Balanced 40k ohm, unbalanced 20k ohm
• Max Input Level: >+22dBu balanced or unbalanced
• CMRR: >40dB, typically >55dB at 1kHz

Outputs

• Connectors: 1/4" TRS, male XLR (pin 2 hot), and Euroblock
• Type: Active-balanaced/unbalanced, RF filtered
• Impedance: Balanced >120 ohm, unbalanced >60 ohm
• Max Output Level: >+20dBu balanced/unbalanced into 2k ohm or greater

System Performance

• Frequency Response: 20Hz to 20kHz, +0.5/0.25dB
• Dynamic Range: >113dB, "A" weighted
• THD+Noise: <0.003%, typical at +4dBu, 1kHz
• Interchannel Crosstalk: <-80dB, 20Hz to 20kHz
• Noise Reduction: Up to 10dB of dynamic broadband noise reduction
• Digital Resolution: 24 Bits
• Sample Frequency: 48kHz
• Latency: 2m sec

Power Supply

• Operating Voltage: 120VAC 60Hz, 220240VAC 50/60Hz
• Power consumption: 17W
• Main Connection: IEC receptacle
• Dimensions: 3.5" H x 19" W x 7.9" D

Manufacturer: DBX
