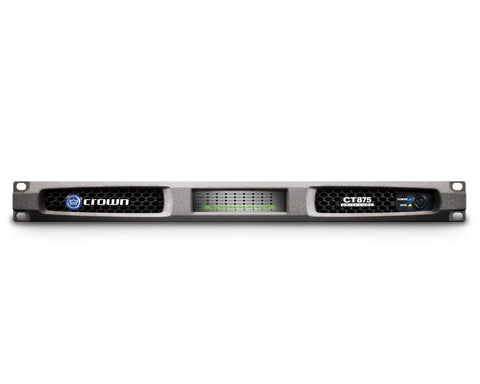

Crown CT 875 Power Amplifier

Crown CT 875 Power Amplifier



  • £2,149.00
Usually shipped within 2-3 working days

Powering the CT 875 amplifier is the pioneering technology of DriveCore™, which integrates the amplifier drive stage into the power output stage fusing everything into a chip the size of a dime.

DriveCore's front-end drive circuits leverage the inherent efficiency of Class D output stages while also maintaining superb sonic characteristics. The end result is an audio amplifier circuit that exhibits the exemplary audio quality of a highly evolved Class AB design.

Product Features

  • Single rack space
  • Balanced 3-pin Barrier block-type/line inputs
  • 4-pin Phoenix-type speaker outputs
  • Flexible input routing
  • Multiple Power Configuration (Auto-Standby, Deep Sleep, and Green Mode)
  • Auxiliary port for amp status and power saving mode (Deep Sleep)
  • Circuit breaker protection with reset switch
  • Convection-cooled chassis (no fan)
  • Three-year, no-fault, fully transferable warranty that completely protects your investment and guarantees its specifications
  • Can be used in mass notification and EN 54 systems
  • Patented technology including DriveCoreTM
  • Fault Reporting through Aux Port
  • Adaptive Rail Technology for power on demand
  • Complies with Green Edge by Harman

Product Specifications

  • Channels: 4
  • Sensitivity: 1.4V
  • Rated Power Output: 75W per channel into 8/4 ohms
  • Signal to Noise Ratio (below rated power 20Hz to 20kHz, A-weighted): 110 dB
  • Total Harmonic Distortion (full rated power, 1kHz): < 0.05%
  • Intermodulation Response (from 0dB down to -30dB): < 0.05%
  • Frequency Response: ± 0.5 dB
  • Common Mode Rejection (20kHz to 1kHz): 70 dB
  • Load Ranges: 4-160 Ohms
  • Dimensions (HxWxD): 1.75” x 19” x 15.19”
  • Net Weight: 10 lbs
  • Net Shipping Weight: 15 lbs
    Manufacturer: Crown
