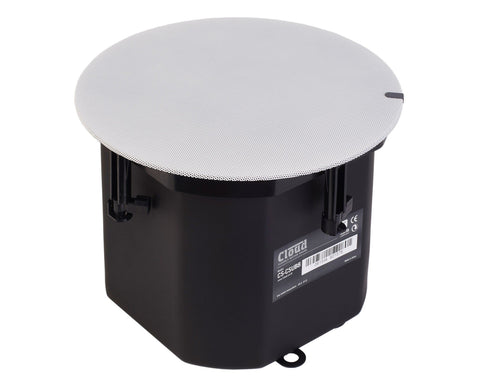

Cloud CS-CSUB8W 8" Speaker

Cloud CS-CSUB8W 8" Speaker



  • £195.00
Usually shipped within 2-3 working days

Cloud's CS-CSUB8W 8-inch in ceiling subwoofer designed perfectly for any application. Excellent low frequency extension, ZeroEdge™ magnetic speaker grilles available in black or white, accessible high-impedance or low impedance switch settings and removable logos ensure Cloud speakers can be used discretely in almost any venue.

Designed exclusively for Cloud Electronics in the USA by a specialist team of speaker design engineers, the new CS-C Series speakers are extremely installer friendly and are tuned to complement the Cloud range of amplifiers and mixer amplifiers. Built for quality performance Cloud speakers are designed and tested to a superior standard by engineers who care and include a comprehensive 5-Year commercial warranty.

Main Features

  • Efficient 8" subwoofer for excellent bass extension.
  • 8" Treated Paper Woofer with Rubber Surround
  • Deep backcan design (200mm)
  • Magnetic speaker grilles available in Black or White.
  • Accessible high-impedance or low impedance switch settings.
  • Removable logos to allow for discrete use.
  • 100v - 100W, 50W, 25W, 13W, or 100W@4Ω.
  • 70v - 100W, 50W, 25W, 13W, 7W or 100W@4Ω.
  • 25v - 13W, 7W, 3W, 1.5W, 0.8W or 100W@4Ω.
  • Nom SPL: 87dB@1mt Max SPL: 107db@1mt.
  • Optional Tile Bridge.
  • Dims: 286.0mm x 210.2mm.
  • Weight: 3.7kg net, 4.5kg gross.
  • Cutout: 271.0mm
  • Finished in White

Product Specifications


  • Response (f3): 86 Hz -20 kHz
  • Response (f10): 64 Hz -20 kHz
  • Impedance: 16 ohm
  • Sensitivity (2.83 V/1 m): 89 dB
  • Sensitivity (1 W/1 m): 92 dB
  • Power handling: 75 W
  • Maximum SPL: 111 dB
  • Average coverage angle (2 kHz - 10 kHz): 107°
  • Transformer taps: 64, 32,16, 8, 4 W
  • Tweeter: 1 inch silk dome with phase plug
  • Woofer: 8 inch treated paper with rubber surround
  • Input: 4 pin Euroblock

Physical & Dimensions

  • Diameter: 286mm
  • Weight: 3.4kg

                                                                Manufacturer: Cloud
